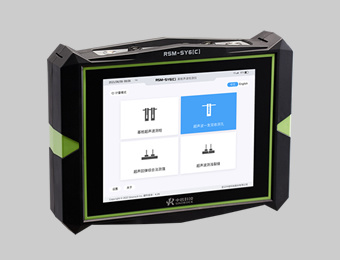

RSM-SY6(C) Ultrasonic Pile Integrity Tester
Portable, Multifunctional, Cost-Effective
Classification:
The RSM-SY6(C) is a compact, lightweight, and multifunctional ultrasonic tester for pile and concrete integrity. Supporting multiple testing methods with automatic interpretation, it delivers reliable, cost-effective performance for both fieldwork and laboratory applications.
Cotnact：
Introduction
The RSM-SY6(C) Ultrasonic Pile Integrity Tester is a portable, high-value CSL device designed for multi-method non-metallic ultrasonic testing. It supports cross-hole acoustic pile integrity detection, ultrasonic-rebound strength evaluation, concrete crack depth analysis, rock mass velocity measurement, and tunnel loosen zone detection. Built with automatic interpretation functions, it generates depth-wave velocity and amplitude curves in real time, ensuring clear and accurate results on site. With its 8.4-inch industrial-grade capacitive touchscreen, wireless depth counter, and 9mm ultra-thin removable battery (≥8h life), the SY6(C) offers unmatched portability and efficiency. Ruggedly designed with IP65 protection, ABS+PC flame-retardant housing, and cloud-ready wireless data upload, it ensures reliable performance in the most demanding environments.
Applications
Acoustic pile integrity detection by transmission method
Concrete crack depth detection
Concrete strength testing via ultrasonic-rebound combined method
Longitudinal wave velocity measurement in geological surveys
Tunnel rock loosen zone detection
Elasticity and dynamic parameters testing of non-metallic materials
Integrity detection of underground diaphragm walls
Detection of voids, honeycombing, and bonding quality in concrete structures
Applicable standards
Standard Test Method for Integrity Testing of Concrete Deep Foundation by Ultrasonic Crosshole Testing（ASTM D6760-16）
Standard Test Method for Integrity Testing of Concrete Deep Foundation by Ultrasonic Crosshole Testing（ ASTM D6760-08）
Core advantages
Automatic Interpretation
Real-time calculation of depth–wave velocity and amplitude curves with accurate first-wave recognition.
Multi-Method Compatibility
Supports cross-hole sonic logging, ultrasonic-rebound strength testing, crack depth detection, rock mass velocity testing, and tunnel loosen zone evaluation.
Portable & Lightweight
Compact, 2.0 kg host with simple, user-friendly operation, making it ideal for field use.
Ultra-Thin Large-Capacity Battery
9mm removable battery, ≥8h endurance, supports backup batteries and Type-C charging.
Industrial-Grade Display
8.4-inch capacitive touchscreen with smooth, precise control, adaptable to strong light.
Rugged Design
ABS+PC flame-retardant housing, IP65 dust/waterproof protection, and stable performance in harsh conditions.
Technical Parameter
|
Model |
RSM-SY6(C) |
|
Display method |
8.4-inch true-color LCD screen |
|
Resolution |
800×600 (adjustable backlight) |
|
Gain accuracy |
0.5dB |
|
Operation mode |
Capacitive touch |
|
Frequency bandwidth |
1～500kHz |
|
Storage capacity |
16G electronic hard disk |
|
Acoustic amplitude accuracy |
≤3% |
|
Signal acquisition method |
Wired |
|
Acoustic time accuracy |
≤0.5% |
|
Data export method |
USB |
|
Receiving sensitivity |
≤10μV |
|
Depth counting method |
Automatic counting |
|
Intertrack crosstalk |
≤1/400 |
|
Master control form |
Low power embedded system |
|
Basic frequency |
600MHz Memory: 256M |
|
Trigger |
Signal trigger |
|
Number of channels |
1 transmit channel,2 number of receiving channels |
|
Number of profiles tested in a single lifting |
two profiles |
|
Protection level |
IP65 |
|
Scanning speed |
≥20 cycles/sec |
|
Power supply mode |
Removable lithium battery |
|
Battery capacity |
12000mAh |
|
Battery thickness |
9mm |
|
Battery life |
≥8h |
|
Sampling method |
Synchronous self-transmitting and self-receiving |
|
Shell |
Engineering Plastic:ABS+PC |
|
Sampling interval |
0.1～200μS |
|
Operating temperature |
-20～+55℃ |
|
Recording length |
0.5～4k |
|
Dimensions |
265×200×56 mm |
|
Transmit voltage |
500V/1000V adjustable |
|
Weight |
2.0 kg (including lithium battery) |
|
Dynamic range |
≥100dB |
|
Lifting device |
|
|
Connection method of lifting device |
Wired/wireless |
|
Minimum space between testing points |
1cm |
|
Wireless transmission distance |
30m |
|
Maximum lifting speed |
1.0m/s |
|
Wireless working hours |
≥20h |
|
Counting method |
Double direction counting |
Standard Configuration
Cross Hole Sonic Logging Tester 1pc
One-transmitting and one-receiving cross-hole probe 3pcs
pipe orifice pulleys 4pcs
Plane probe connecting cable 2pcs
Longitudinal wave plane acoustic wave probe 2pcs
Depth counter connecting cable 1pc
Depth counter 1pc
Toolkit 1 set
Power adapter 1pc
Tripod 1pc
Instrument container 1pc
FAQs
Q
What testing methods does the RSM-SY6(C) support?
+
A
It supports cross-hole sonic logging for pile integrity, ultrasonic-rebound combined strength testing, concrete crack-depth analysis, rock mass longitudinal-wave velocity measurement, tunnel loosen-zone detection, diaphragm-wall integrity checks, and detection of voids/honeycombing/bonding quality in concrete.
Q
Is it suitable for harsh field conditions, and how portable is it?
+
A
Yes. The SY6(C) uses an 8.4-inch industrial-grade capacitive touchscreen, has an IP65 dust/water-resistant ABS+PC housing, and weighs about 2.0 kg (incl. battery). The ultra-thin removable battery provides ≥8 hours of operation and supports Type-C charging—making it highly portable and field-ready.
Q
What’s included in the standard configuration?
+
A
The kit includes the cross-hole sonic logging tester, one-transmitting/one-receiving cross-hole probes (3 pcs), plane acoustic probes (2 pcs), plane probe connecting cables (2 pcs), pipe-orifice pulleys (4 pcs), a depth counter with connecting cable, tripod, power adapter, toolkit, and an instrument container.
