RSM-SY8(C) Ultrasonic Pile Integrity CT Imaging Tester
4 Pipes 18 Profiles,3D pile tomography
Classification:
RSM-SY8(C) brings CT imaging to pile testing, enabling 18-section data capture in a single lift. With 3D defect modeling, wireless operation, and intelligent depth counting, it offers unmatched speed, clarity, and precision in foundation inspection.
Cotnact：
Introduction

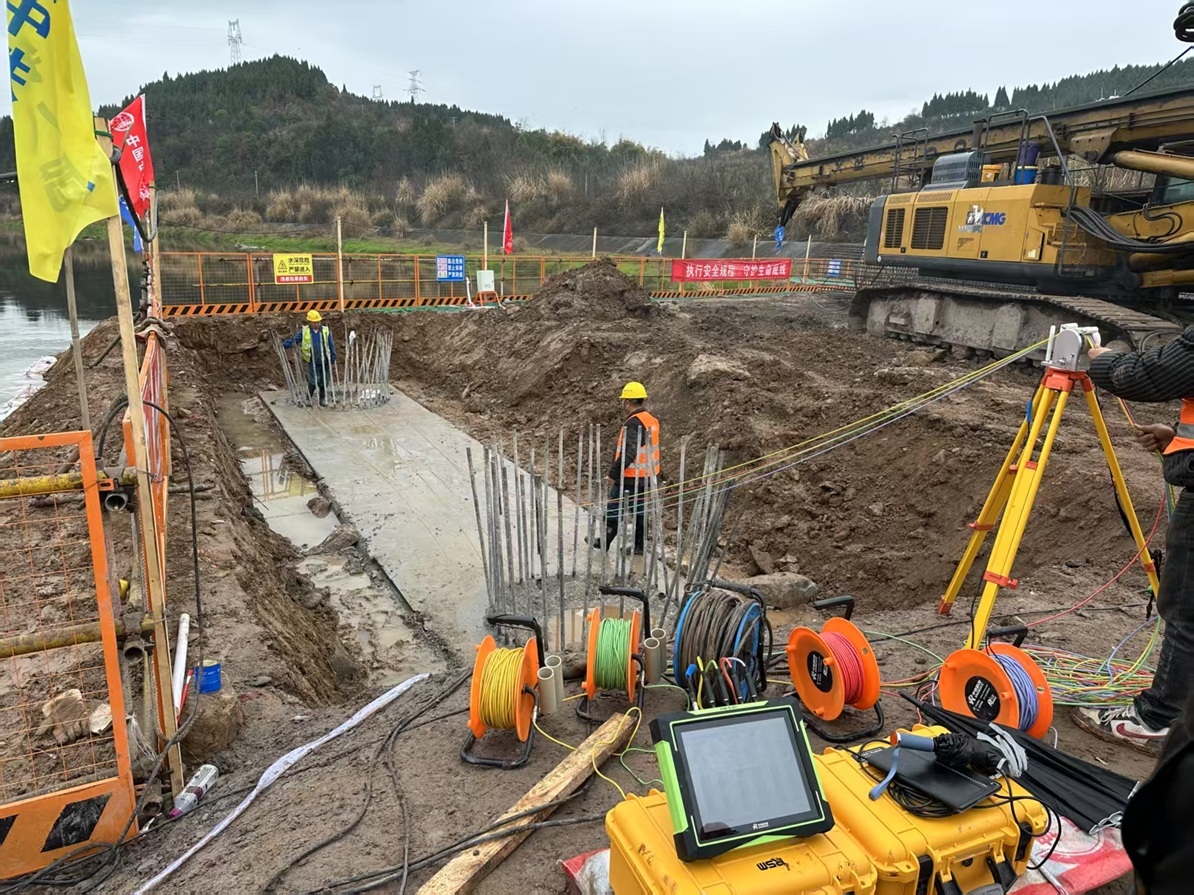

Acoustic pile tomography detection by transmission method
Acoustic pile integrity detection by transmission method
Concrete crack depth detection
Concrete strength detection by ultrasonic-rebound combined method
Longitudinal wave velocity test of rock mass in geological investigation
Detection of loosen zone of tunnel rock mass
Test of dynamic and elasticity parameters of non-metallic materials
Integrity detection of underground diaphragm wall
Applicable standards
Standard Test Method for Integrity Testing of Concrete Deep Foundation by Ultrasonic Crosshole Testing（ASTM D6760-16）
Standard Test Method for Integrity Testing of Concrete Deep Foundation by Ultrasonic Crosshole Testing（ ASTM D6760-08）
Core advantages
Rapid on-site CT
Scanning speed: ≥10 cycles/sec;
Eighteen profiles can be tested in a single lifting intuitively and accurately and the size, range and specific location determination of the whole pile defect can be displayed in real time.
Professional pile 3D CT imaging software
It can make the testing results generate various types of three-dimensional dynamic diagrams, accurately locate the defect and provide the significant basis for the coring and other follow-up supplementary verification.
More Efficient , More Accurate
The maximum lifting speed can reach 60m/min; the minimum resolution of lifting depth is 1cm.
Large Capacity Ultra-thin Battery
9mm ultra-thin large-capacity battery, battery life ≥7h and removable.Can be equipped with a backup battery.
Enterprise customization
Comply with international standards and support customized R&D.
Industrial-grade capacitive screen
Newly upgraded industrial-grade capacitive touch screen, smooth and precise operation, adapt to strong light environment.
Technical Parameter
|
Model |
RSM-SY8(C) |
|
Display method |
12.1-inch true-color LCD screen |
|
Resolution |
1280×768 (adjustable backlight) |
|
Gain accuracy |
0.5dB |
|
Operation mode |
Capacitive touch |
|
Frequency bandwidth |
1～500kHz |
|
Storage capacity |
16G electronic hard disk |
|
Acoustic amplitude accuracy |
≤3% |
|
Signal acquisition method |
Wired |
|
Acoustic time accuracy |
≤0.5% |
|
Data export method |
USB |
|
Receiving sensitivity |
≤10μV |
|
Depth counting method |
Automatic counting |
|
Intertrack crosstalk |
≤1/400 |
|
Master control form |
Low power embedded system |
|
Basic frequency |
1GHz |
|
Memory |
512M |
|
Trigger |
Signal trigger |
|
Transmit channel |
Four |
|
Number of receiving channels |
Eight |
|
Number of profiles tested in a single lifting |
18 profiles |
|
Protection level |
IP65 |
|
Scanning speed |
CT tomography software: ≥10 cycles/sec transmission method: ≥20 cycles/sec |
|
Power supply mode |
Removable lithium battery |
|
Battery capacity |
12000mAh |
|
Battery thickness |
9mm |
|
Battery life |
≥7h |
|
Sampling method |
Synchronous self-transmitting and self-receiving |
|
Shell |
Engineering Plastic:ABS+PC |
|
Sampling interval |
0.1～200μS |
|
Operating temperature |
-20～+55℃ |
|
Recording length |
0.5～4k |
|
Dimensions |
340×275×62 mm |
|
Transmit voltage |
500V/1000V adjustable |
|
Weight |
3.0 kg (including lithium battery) |
|
Dynamic range |
≥100dB |
|
Lifting device |
|
|
Connection method of lifting device |
Wired/wireless |
|
Minimum space between testing points |
1cm |
|
Wireless transmission distance |
30m |
|
Maximum lifting speed |
1.0m/s |
|
Wireless working hours |
≥20h |
|
Counting method |
Double direction counting |
Standard Configuration

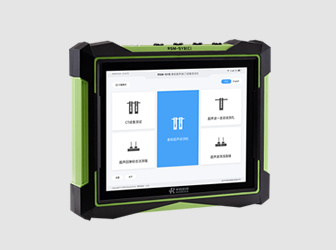

Cross Hole Sonic Logging Tester 1pc

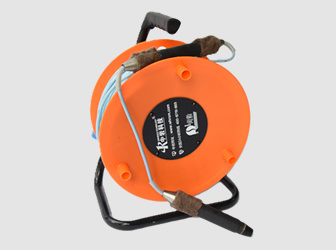

Dual-transmitting and Dual-receiving cross-hole probe 4pcs

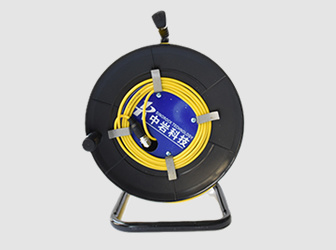

One-transmitting and one-receiving cross-hole probe 4pcs

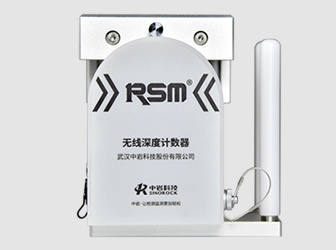

Depth counter 1pc

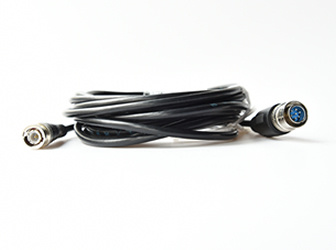

Depth counter connecting cable 1pc

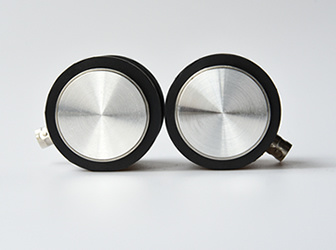

Longitudinal wave plane acoustic wave probe 2pcs

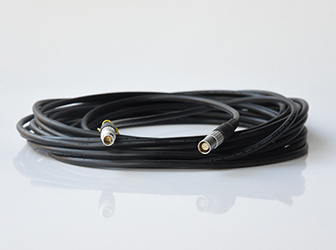

Plane probe connecting cable 2pcs
pipe orifice pulleys 4pcs

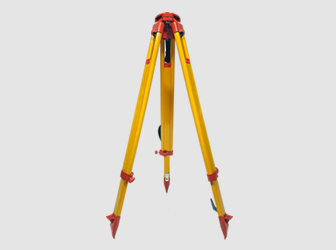

Tripod 1pc

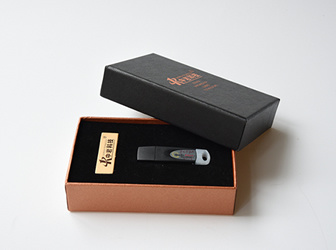

CT tomography software drive 1pc
Instrument container 2pcs
FAQs
Q
What makes the RSM-SY8(C) different from traditional cross-hole sonic logging systems?
+
A
A: It integrates CT imaging for piles and captures data across 4 tubes and 18 profiles in a single lift, reconstructing 3D defect models that show defect size, range, and location in real time—significantly improving speed and clarity versus conventional methods.
Q
Q2: What applications and standards does it support?
+
A
A: Typical uses include acoustic pile tomography and integrity testing, concrete crack depth and ultrasonic-rebound strength evaluation, rock mass wave-velocity tests, tunnel loosen-zone detection, and diaphragm wall integrity checks. It complies with ASTM D6760 for ultrasonic cross-hole testing of deep foundations.
Q
Q3: Is it field-ready? What are the key hardware specs?
+
A
A: Yes. It features IP65 protection, a 12.1" industrial-grade capacitive touchscreen, and a 9 mm ultra-thin removable battery with ≥7 h life. The system supports wireless depth counting, 1 cm depth resolution, and a maximum lifting speed up to 60 m/min; the host weighs about 3.0 kg (incl. battery).
