RSM-PDT(D) High Strain Pile Bearing Tester
Integrated PDA and PIT, Continuous Pile Driving Monitoring
Classification:
A multifunctional device mainly used for testing the bearing capacity of foundation piles, while supporting pile driving monitoring and low strain integrity testing. It is easy to operate, highly adaptable, and stable, ensuring accurate and reliable data. Application High Strain Pile Bearing Test and Low strain pile integrity Test
Cotnact：
Introduction

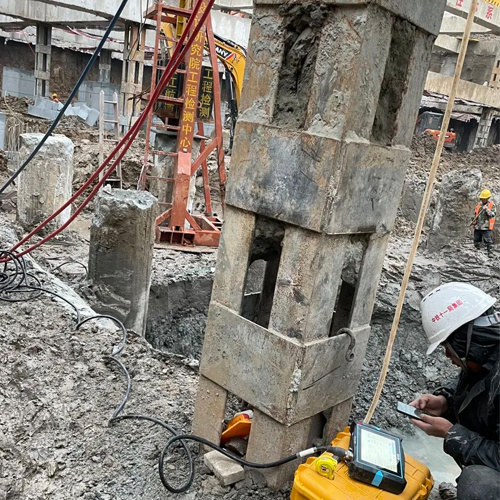

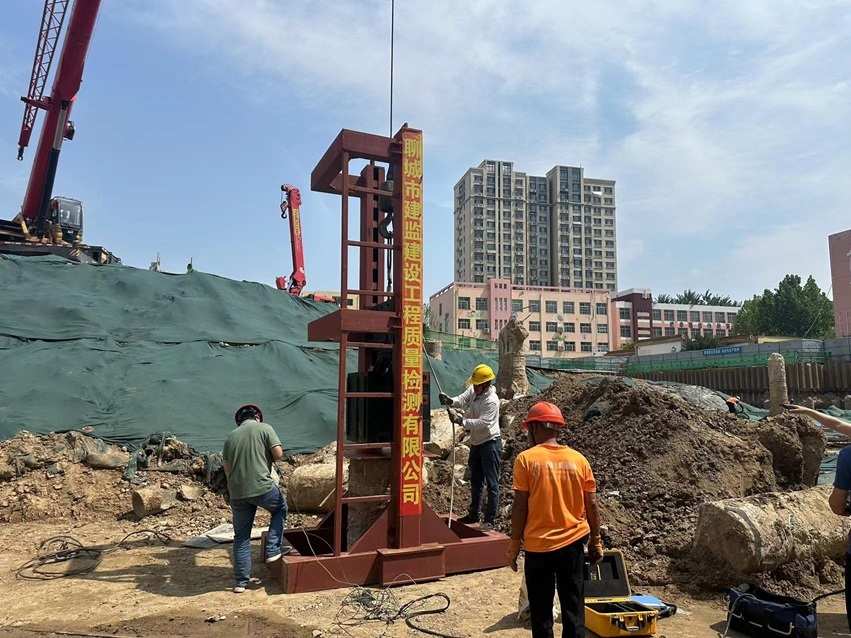

The RSM-PDT (D) pile high strain detector is a device mainly used for testing the high strain bearing capacity of foundation piles, and is compatible with continuous pile driving monitoring and low strain integrity testing.
This device is compatible with two detection methods, economical and practical, with multiple functions, friendly interface, simple operation, strong adaptability to detection environment, high device stability, and reliable data.
Applicable standards

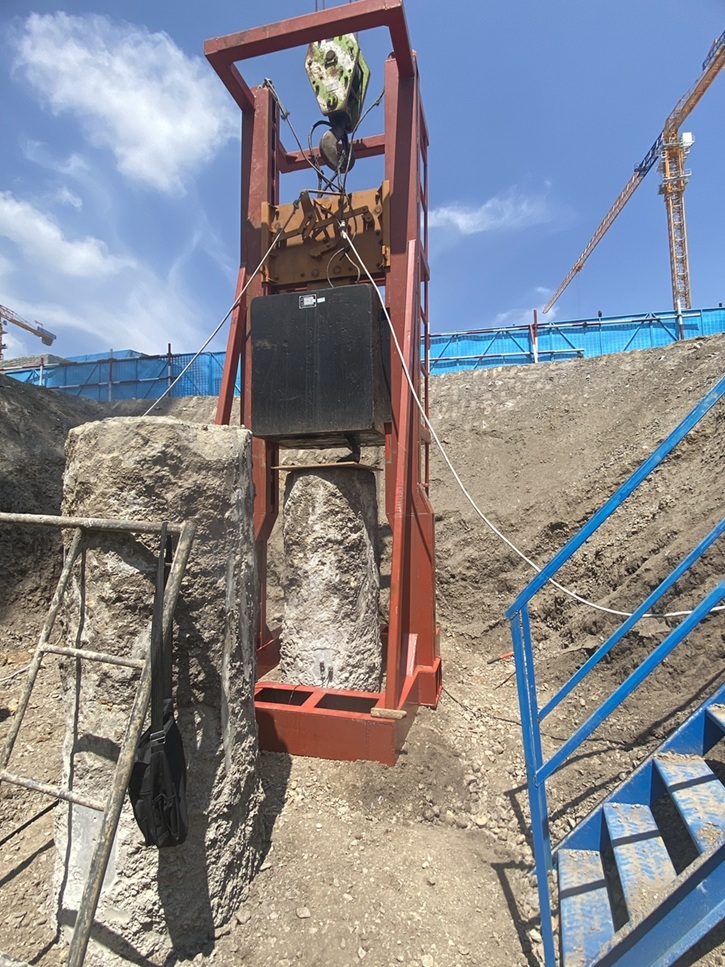

High Strain Pile Bearing Test and Low strain pile integrity Test
Core advantages
Pile Driving Monitoring
With fast signal acquisition pace, the 60 hammers/min signal acquisition can be completed and the pile driving monitoring testing can be carried out in real time.
Strain transducer installation monitoring, automatic balance adjustment of strain bridge
Real-time monitoring of strain sensor deformation status;
Reduce the impacts of initial deformation of strain transducer on signal acquisition and eliminate the signal zero drift.
Intuitive Result
Analysis results by Case method, F-ZV curves and upper and lower traveling wave curves are displayed in the field.
Instantaneous floating point amplification technology
Compatible with the distortionless acquisition of strong and weak signals.
The three-dimensional correction function for shallow defect is owned and the defect can be located accurately.
Large Capacity Ultra-thin Battery
9mm ultra-thin large-capacity battery, battery life ≥10h and removable.Can be equipped with a backup battery.
Industrial-grade capacitive screen
Newly upgraded industrial-grade capacitive touch screen, smooth and precise operation, adapt to strong light environment
Technical Parameter
|
Display method |
8.4-inch true-color LCD |
|
screen Resolution |
800×600 (adjustable backlight) |
|
Operation mode |
Capacitive touch |
|
Storage capacity |
16G electronic hard disk |
|
Signal acquisition method |
Wired |
|
Data export method |
USB |
|
Master control system |
Low power embedded system Basic frequency：≥1GHz Memory: 512M Floating point magnification 1～256 |
|
Recording length |
1 k |
|
A/D conversion accuracy |
24-bit instantaneous floating point |
|
System noise voltage |
＜20μV |
|
Dynamic range |
≥100 dB |
|
Frequency bandwidth |
Speed channel |
|
2～12000Hz Strain channel |
0～12000Hz |
|
Trigger level |
Four-level selectable |
|
Number of channels |
PDA |
|
four channels PIT |
one channel |
|
Sampling mode |
2 accelerometers + 2 strain transducers |
|
Sensor |
Piezoelectric accelerometer, strain transducerProtection level IP65 |
|
Power supply mode |
Removable lithium |
|
battery battery capacity |
12000mAh |
|
Battery thickness |
9mm |
|
Battery life |
≥10h |
Standard Configuration

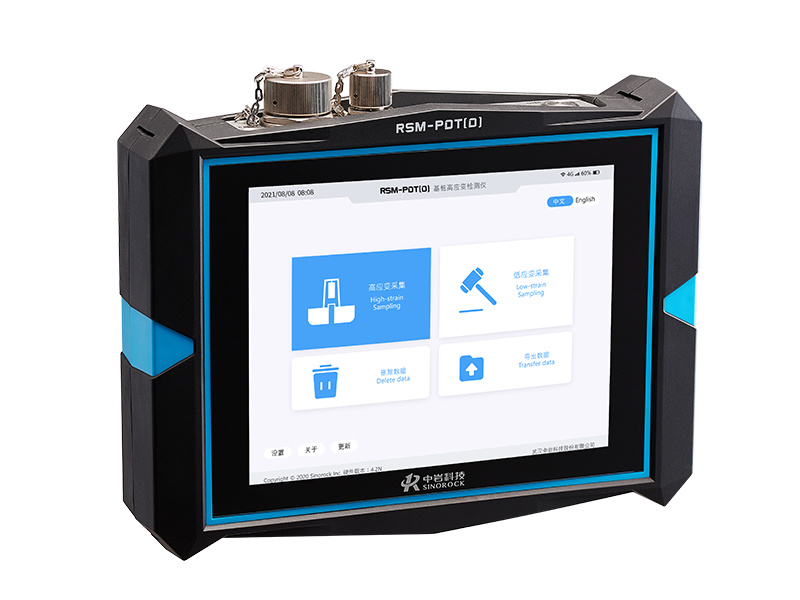

High-Strain Pile Bearing Tester 1pc

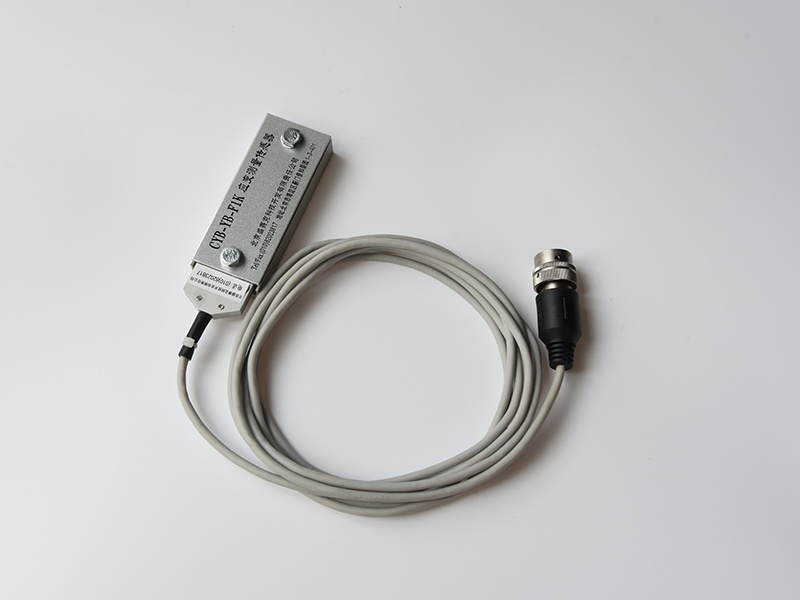

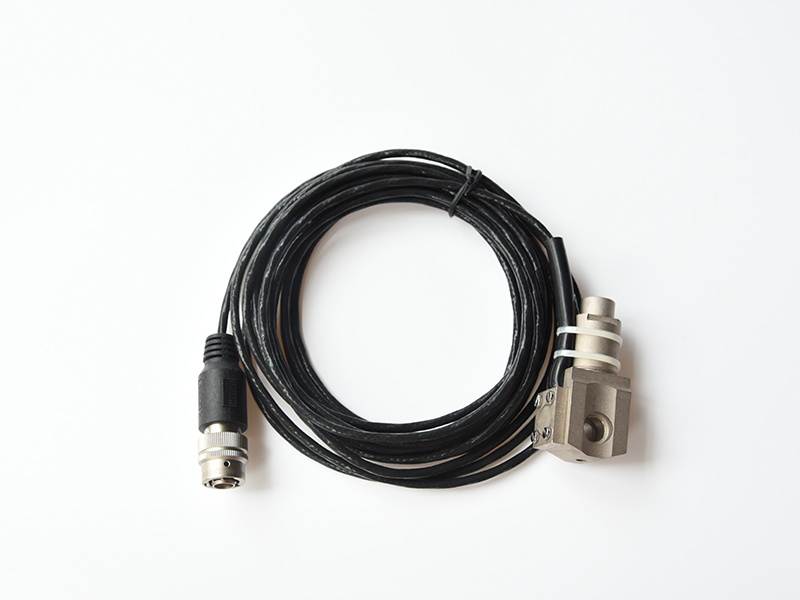

Strain transducer 2pcs

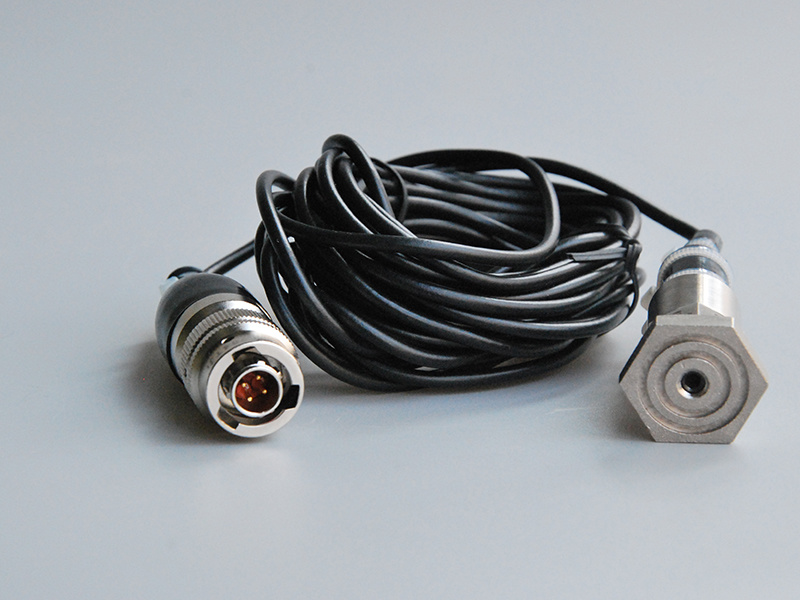

Piezoelectric accelerometer 2pcs

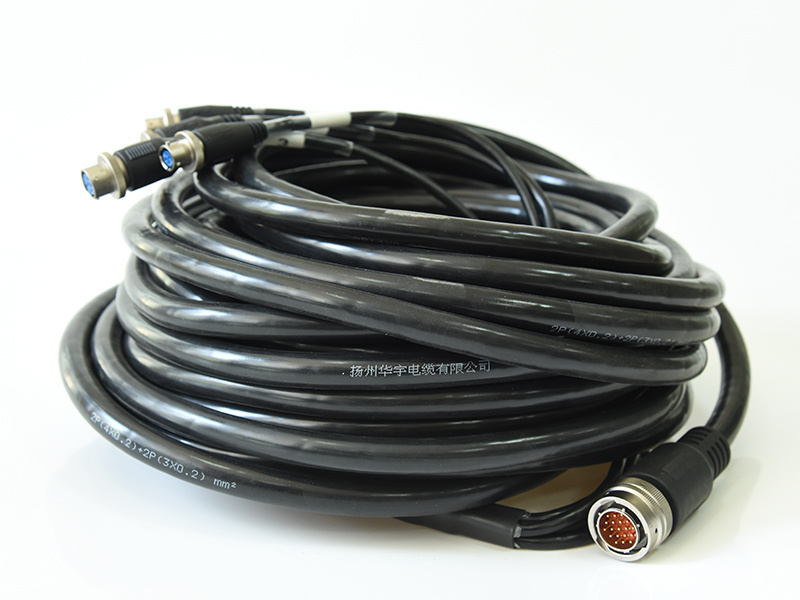

High strain testing cable 1pc
Low strain piezoelectric accelerometer and connecting cable 1pc

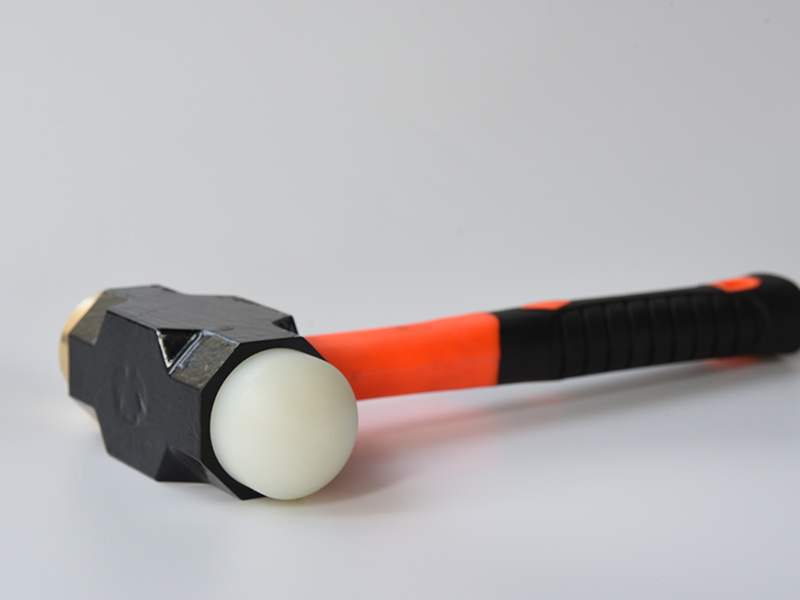

Combined hammer 1pc

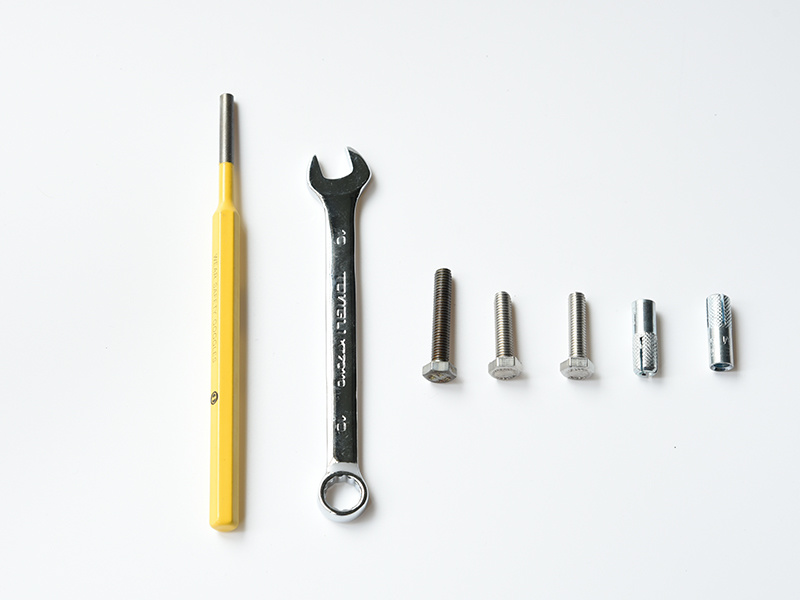

Expansion bolt 1set

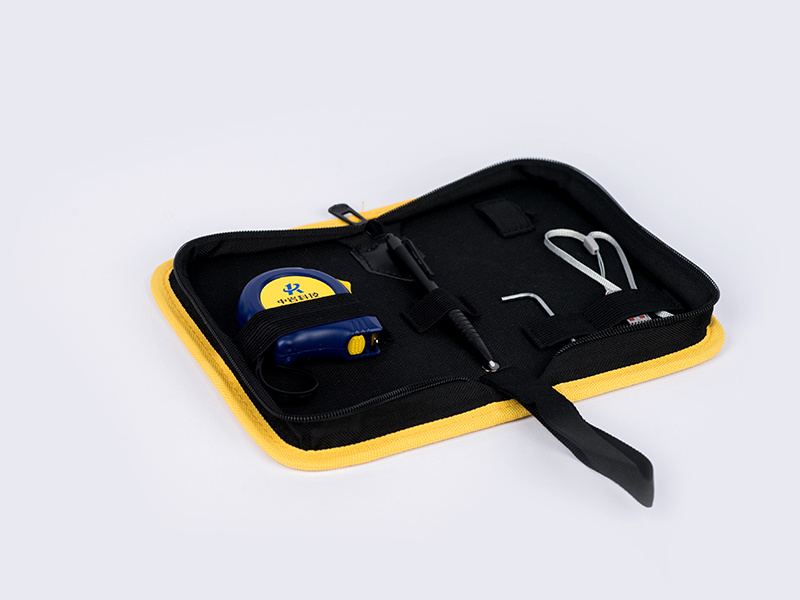

Toolkit 1 set

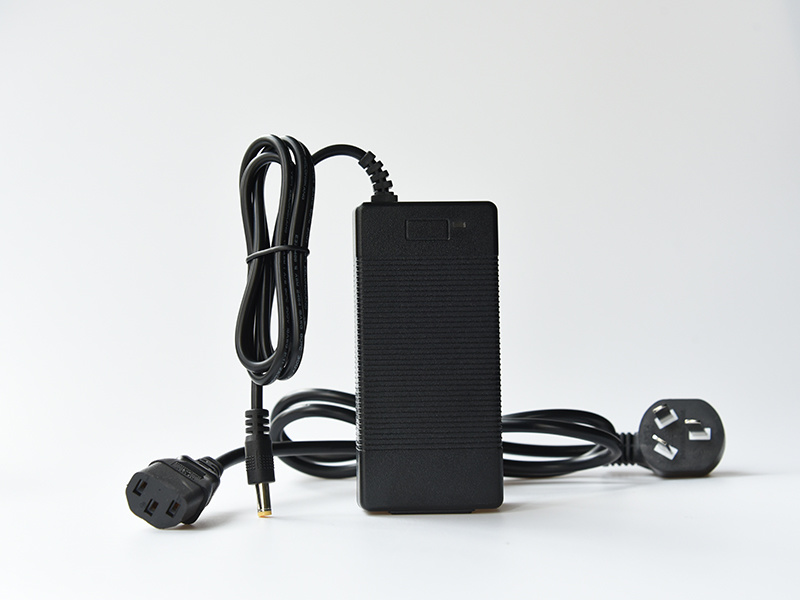

Power adapter 1pc
Portable Backpack 1pc

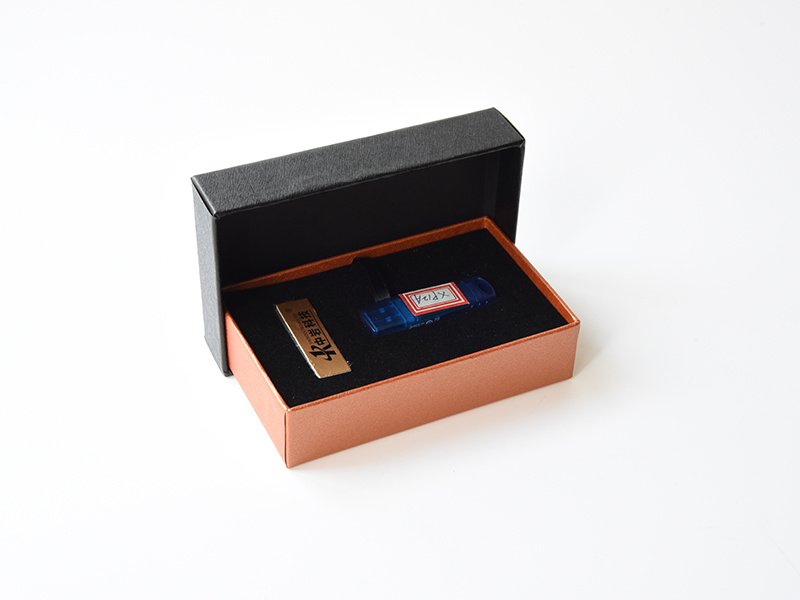

Cap-wap drive 1pc

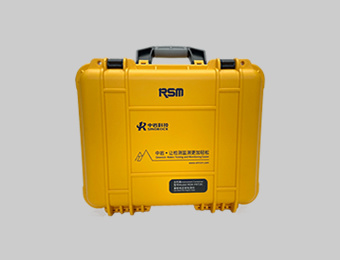

Instrument container 1pc
FAQs
Q
Q4:What is Minimum/Maximum Diameter and Minimum/Maximum Depth of Pile can be tested by this device?
+
A
A: maximum and minimum diameter is unlimited, the depth requirements meet the principle requirements of one-dimensional stress wave rod. Because the high strain test energy is large and the incident pulse width is wide, the requirement for the length diameter ratio of the pile is greater
Q
Q3: What must do if we cannot repeat hammering on site?
+
A
A: If the pile does not meet the conditions for repeated test, pre acquisition is required before the test to ensure that effective signals can be obtained by one acquisition
Q
Q2: How much minimum settlement could accept when testing in field?
+
A
A: It is determined according to the selected standard requirements. The requirements of each standard are different. The Chinese construction industry standard is 2-6mm，In Chinese Mainland, a large number of experimental data show that the bearing capacity results obtained when the pile settlement after hammering is within the range of 2-8mm are the most accurate.
Q
Q1: when is the right time to do a PDA test on the foundation piles
+
A
A: The specific test period should refer to the requirements of the corresponding specification or standard. According to a lot of testing experience, for Bored piles, the PDA test can be carried out when the pile foundation reaches the strength requirements after about 28 days of pile formation; for RC piles or Spun pile, the pile rest period should be reached, and the test should be carried out about 14 days after Piling.
