RSM-SLT(C) Small Load Static Tester
Compact and lightweight, enabling precise, fully automated static load tests under small-tonnage conditions.
Classification:
The RSM-SLT(C) Small Load Static Tester integrates a micro hydraulic pump, wireless sensors, and remote control for fully automated load testing. Designed for small-scale projects, it ensures precise, efficient, and intelligent static load testing across multiple applications.
Cotnact：
Introduction
The RSM-SLT(C) Small Load Static Tester is a next-generation intelligent testing device that integrates a lightweight high-pressure micro pump, wireless displacement sensors, and smart control modules. Supporting 0–500 kN tests, it delivers exceptional accuracy (control error ≤ 0.5 kN) for static load applications such as pile foundations, anchors, anchor bolts, and plate load tests. With features like automated loading/unloading, mobile app remote control, GPS positioning, and multi-sensor compatibility, it reduces on-site risks while ensuring reliable, efficient, and traceable data acquisition. The system complies with a wide range of international and domestic standards, and testing methods can be customized to specific regulatory requirements.
Application Fields
Static load tests of foundation piles (compression, uplift, lateral, photovoltaic piles)
Anchor rod load tests (basic, creep, acceptance, locking force, uplift)
Plate load tests (shallow, deep, rock foundation, composite foundation, borehole bottom compression)
Anchor bolt and soil nail anchoring force tests
Other small-tonnage static load tests with customizable methods and standards
Applicable standards
Standard Test Methods for Deep Foundations Under Bi-Directional Static Axial Compressive Load（ASTM D8169/D8169M-18）
Standard Test Methods for Deep Foundations Under Static Axial Compressive Load（ASTM D1143/D1143M-07）
Standard Test Methods for Deep Foundation Elements Under StaticAxial Tensile Load (ASTM D3689/D3689M-22)
Standard Test Methods for Deep Foundation Elements Under StaticLateral Load(ASTM D3966/D3966M-22)
Compliant with international and domestic standards and regulations for various industries and local standards.
Core advantages
Compact High-Pressure Micro Pump
Integrated micro hydraulic pump (70 MPa), 50% lighter and 40% smaller than conventional pumps; portable for remote or confined sites; optional lithium battery power supply.
Precise Load Control
Fully automatic loading/unloading with intelligent control algorithms; control accuracy better than 0.5 kN; ensures stable, repeatable results in small-load scenarios.
Remote Smart Operation
Automatic load testing with built-in protection functions; remote monitoring and control via mobile app, allowing operators to stay safe away from hazardous environments.
Wireless Displacement Measurement
High-precision wireless displacement sensors with IP67 waterproofing, over 15 days of continuous work, and absolute data retention; eliminates wiring complexity.
Intelligent Compatibility
Supports pressure and load sensors; wired/wireless displacement sensors; multiple power options (battery or AC/DC); test methods aligned with various international/national codes.
Easy Data Upload
Test data can be uploaded via 4G, Wi-Fi, or Bluetooth, or sent directly to designated emails; supports online software upgrades and secure cloud backup.
Technical Parameter
|
Model |
RSM-SLT(C) |
|
Display method |
8.0-inch high-brightness true-color LCD screen |
|
Resolution |
1024×768 (adjustable backlight) |
|
Operation mode |
Capacitive touch (with screen lock) |
|
Storage Capacity |
16G electronic hard disk |
|
Data backup |
Automatic backup |
|
Communications |
Wireless |
|
Wireless communication range |
≥ 1000 m |
|
Number of wireless measurement/control points |
1 |
|
Power Supply |
AC 220V / DC 12V via control box |
|
Power Consumption |
≤20W |
|
Operating temperature |
−20 °C to +55 °C |
|
Relative humidity |
≤ 85% |
|
Dimensions |
265 × 200 × 56 mm |
|
Weight |
2.2 kg (including lithium battery) |
|
RSM-SLT Micro Pump + DC Control Box |
|
|
Displacement Measurement Channels |
4 |
|
Range |
50 mm per measurement, cumulative multi-step measurement supported |
|
Accuracy |
Error ≤0.1% FS |
|
Resolution |
≤0.01 mm |
|
Power Supply |
Wired: Supplied directly by control box Wireless: Built-in rechargeable lithium battery |
|
Load/Pressure Measurement Channels |
Pressure / Load |
|
Range |
0–70 MPa / 0–10,000 kN (depending on load sensor capacity) |
|
Accuracy |
Class 0.5 / 0.4 / 0.25 |
|
Pump Type |
Fully automatic hydraulic pump with intelligent reversing |
|
Wireless Communication Distance |
With host: >1000m Wireless displacement: ≥30m |
|
Power Supply Options |
DC: Dedicated lithium battery (DC 60V) AC: AC 220V to DC 60V converter |
|
Pump Weight |
≤28 kg (including oil) |
|
Pump Dimensions |
420 mm × 400 mm × 180 mm |
Standard Configuration

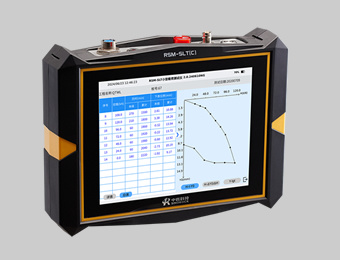

Small Load Static Tester 1 unit

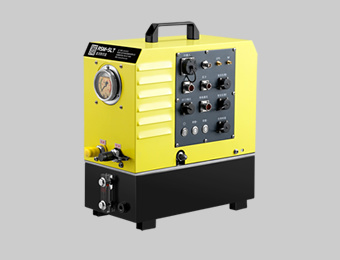

DC 60V Micro Hydraulic Pump 1 unit

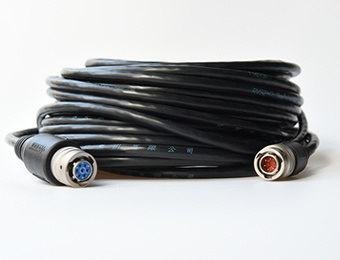

Static Load Communication Cable 1pc

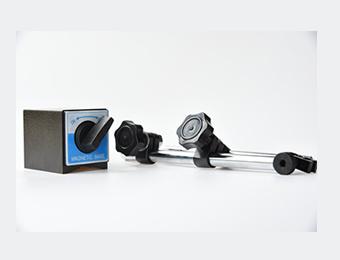

Magnetic Stand 2pcs

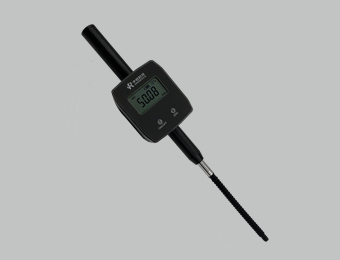

Displacement Sensor 2pcs

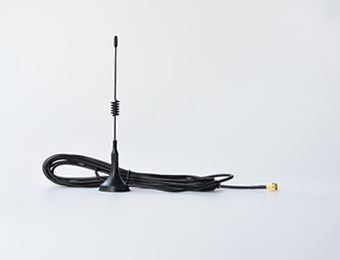

Sucker antenna 3pcs

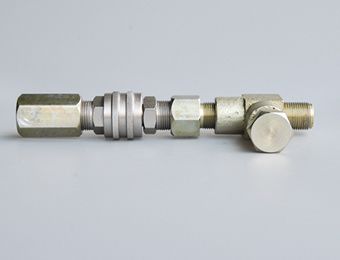

Three-way Connector 1set

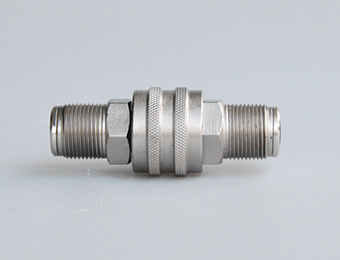

Quick Connector 1 set

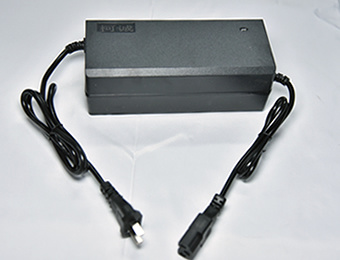

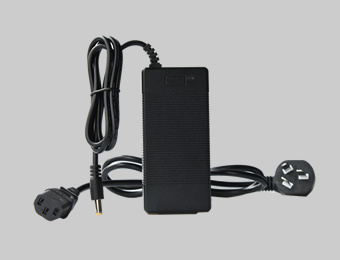

Power adapter 1pc

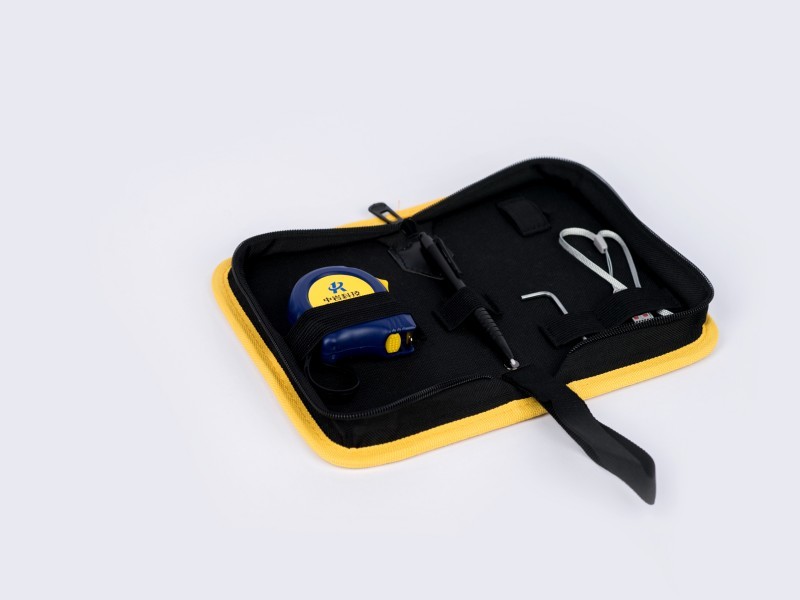

Toolkit 1 set

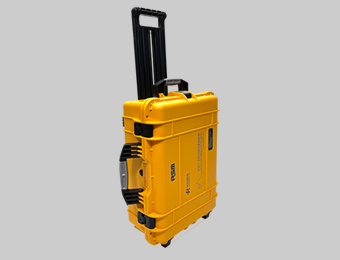

Instrument container 1pc

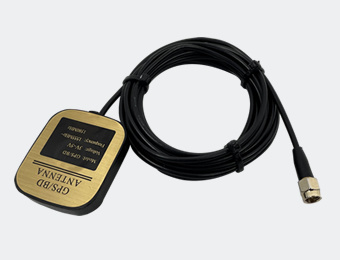

GPS Antenna 1pc

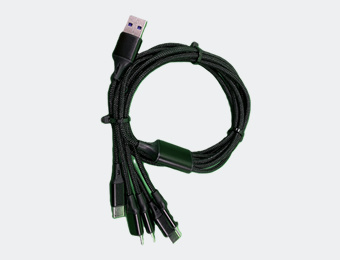

TYPE-C Charging Cable 1pc

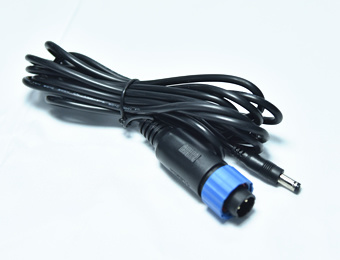

DC Oil Pump Power Cable 1pc

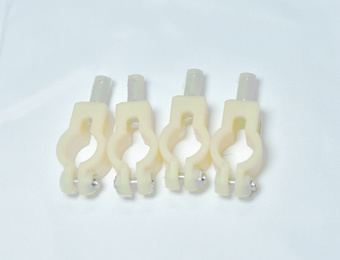

Plastic Clamp for Displacement Sensor 4pcs

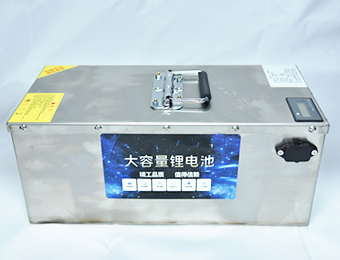

Lithium Battery(60V/60Ah) 1pc
Lithium Battery Charger 1pc
12V Main Power Supply Cable 1pc

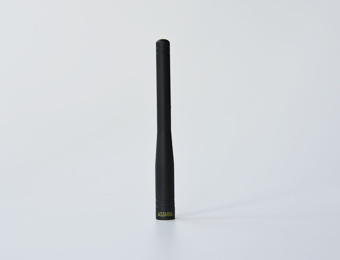

Rod Antenna 2pcs
Market Case
FAQs
Q
What types of tests and standards does the RSM-SLT(C) support?
+
A
It supports static load tests for foundation piles (compression, uplift, lateral, PV piles), anchor rods (basic, creep, acceptance, locking force, uplift), plate load tests, and anchor bolts/soil nails. It aligns with major standards including ASTM D1143 (axial compression), ASTM D3689 (axial tension), ASTM D3966 (lateral load), and ASTM D8169 (bi-directional compression). Test methods can be customized to local codes.
Q
How accurate is the load control and how does it improve on-site safety?
+
A
The system offers fully automated loading/unloading with control error ≤0.5 kN, reducing human error and ensuring repeatability. Operators can monitor and control tests via a mobile app with built-in protection functions, allowing them to stay clear of hazardous areas.
Q
What hardware features make it portable and field-ready?
+
A
It integrates a compact high-pressure micro pump (up to 70 MPa), high-precision wireless displacement sensors (IP67, ≥15 days continuous work), and multiple power options (dedicated lithium battery or AC). Wireless communication with the host exceeds 1000 m, and the pump unit itself weighs ≤28 kg, suitable for confined or remote sites.
