RSM-JC6(E) Static Load Tester
Wireless control, precise monitoring, and smart protection with an integrated DC fully automatic oil pump for auto-reversal and adjustable speed.
Classification:
The RSM-JC6(E) Static Load Tester is a highly intelligent static load testing device. Its integrated digital control unit and DC fully automatic oil pump enable precise speed control for tests of various tonnages. The main unit supports wireless operation, while smartphone mirroring allows remote control. Guided operation software with built-in domestic and international testing methods ensures user-friendly, safe, and reliable performance.
Cotnact：
Introduction
The RSM-JC6(E) Static Load Tester is a highly intelligent static load testing device. Its integrated digital control unit and DC fully automatic oil pump enable precise speed control for tests of various tonnages. The main unit supports wireless operation, while smartphone mirroring allows remote control. Guided operation software with built-in domestic and international testing methods ensures user-friendly, safe, and reliable performance.
Applications
Static Axial Compressive Load Testing
Static Axial Tensile Load Testing
Static Lateral Load Testing
Plate Load Testing
Bi-Directional Static Axial Compressive Load Testing
Anchor Rod Load Testing
Applicable standards
Standard Test Methods for Deep Foundations Under Bi-Directional Static Axial Compressive Load（ASTM D8169/D8169M-18）
Standard Test Methods for Deep Foundations Under Static Axial Compressive Load（ASTM D1143/D1143M-07）
Standard Test Methods for Deep Foundation Elements Under StaticAxial Tensile Load (ASTM D3689/D3689M-22)
Standard Test Methods for Deep Foundation Elements Under StaticLateral Load(ASTM D3966/D3966M-22)
Compliant with international and domestic standards and regulations for various industries and local standards.
Core advantages
Integrated Fully Automatic Oil Pump
One-piece DC automatic pump with auto-reversal, adjustable flow rate, and precision control; powered by lithium battery, eliminating the need for on-site power supply.
Multi-purpose Versatility
Suitable for pile foundations, ground static load tests, and anchor rod load tests, providing an all-in-one solution.
Remote Control (e+ Smart Operation)
Main unit and control box support wireless networking with >1000 m distance; smartphone mirroring enables safe operation away from complex and hazardous sites.
Wireless Absolute Displacement
High-precision wireless displacement sensors with IP67 waterproof rating, >15 days continuous operation, and real-time status display; data traceable even after power-off.
Intelligent Compatibility
Supports multiple force measurement methods with pressure or load sensors; compatible with mainstream oil pumps.
Easy Uploading
On-site data can be uploaded directly via 4G, WiFi, or Bluetooth to supervisory platforms; memory card backup also supported.
Technical Parameter
|
Model |
RSM-JC6(E) |
|
Display method |
8.4-inch high-brightness true-color LCD |
|
Resolution |
800 × 600 (adjustable backlight) |
|
Operation mode |
Capacitive touch (screen lock supported) |
|
Operating system |
Linux |
|
Interfaces |
USB; data export also available via email from the main unit |
|
Storage |
16 GB internal electronic/solid-state storage |
|
Data backup |
Automatic |
|
Controller |
Low-power embedded main control unit |
|
Communications |
Wireless / wired |
|
Wireless communication range |
≥ 1000 m |
|
Number of wireless measurement/control points |
1 |
|
Power |
Supply modes: DC 12 V / 5 A power adapter, power from RSM-JC6 DC control box, or removable/rechargeable lithium battery |
|
Uplink methods |
Built-in 4G, Bluetooth, and Wi-Fi |
|
Operating temperature |
−20 °C to +55 °C |
|
Relative humidity |
≤ 85% |
|
Dimensions |
265 × 200 × 56 mm |
|
Weight |
2.2 kg (including lithium battery) |
|
RSM-JC6 DC Control Box + DC Oil Pump |
|
|
Displacement Measurement Channels |
Wired version: 4 channels (requires displacement adapter box) Wireless version: 4 channels |
|
Pressure/Load Measurement Channels |
Pressure sensor: 1 channel (can be integrated inside the pump or connected externally) Load sensor: 1 channel / 8 channels (8-channel configuration requires load adapter box) |
|
Displacement accuracy |
0.1% FS |
|
Displacement resolution |
0.01 mm |
|
Pressure measurement accuracy |
≤ ±0.5% FS / ≤ ±0.25% FS (including pressure and load sensors) |
|
Pressure sensor range |
0–70 MPa |
|
Load measurement range |
0–100,000 kN (depending on load cell capacity) |
|
Sensor Power Supply |
Wired displacement sensors powered by RSM-JC6 DC control box Wireless displacement sensors equipped with rechargeable lithium battery (up to 15 days continuous operation on full charge) |
|
Wireless Range |
Control box to main unit: > 1000 m |
|
Wireless displacement sensors |
usable within 50 m radius around the test point |
|
Power Supply (Control Box / Pump) |
DC: Specified 60 V lithium battery |
|
Pump Reversing |
Fully automatic reversing |
|
Oil Pump(Physical Specifications) |
Dimensions: 660 × 590 × 300 mm Weight: 46 kg (with oil filled) |
Standard Configuration

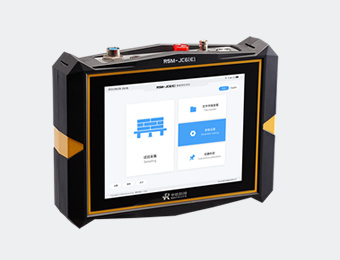

Static Load Tester 1pc

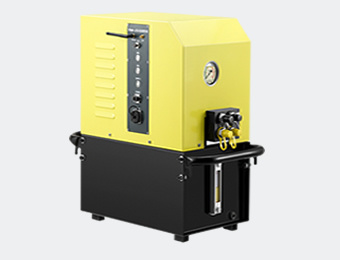

Integrated DC Fully Automatic Oil Pump 1set

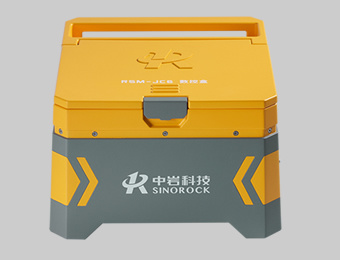

JC6 Control Box 1pc

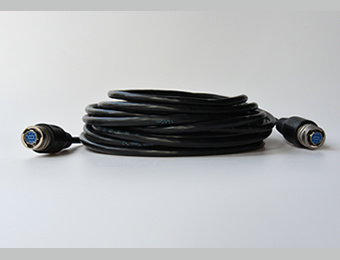

Static Load Communication Cable 1pc
Control Box Communication Cable 1pc
Wireless Displacement Sensor 6pcs
Magnetic table 4pcs

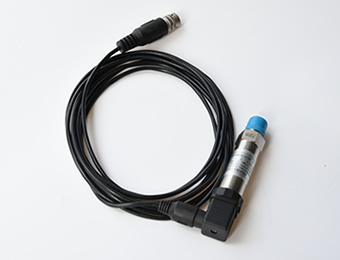

Pressure Sensor 1pc

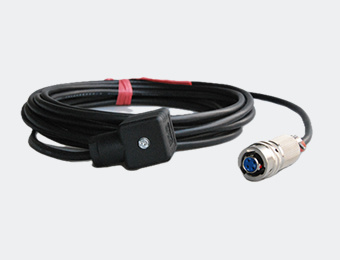

Pressure Sensor Connection Cable 1pc

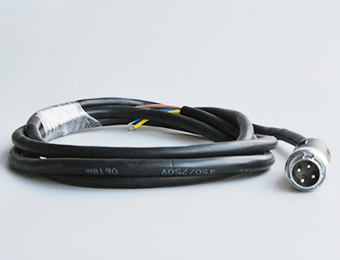

Control Box Power Input Cable 2pcs
Control Box Power Output Cable 1pc
Sucker antenna 3pcs
Rod Antenna 2pcs
GPS Antenna 1pc
Three-way Connector 1set
Quick Connector 1 set
TYPE-C Charging Cable 1pc
Lithium Battery Charger 1pc
Lithium Battery(60V/60Ah) 1pc
12V Main Power Supply Cable 1pc
Plastic Clamp for Displacement Sensor 4pcs
Pressure Sensor Conversion Cylinder 1pc
DC Oil Pump Power Cable 1pc
Toolkit 1 set
Power adapter 1pc
Instrument container 2pcs
Market Case
FAQs
Q
What test types and standards does the RSM-JC6(E) support?
+
A
It covers static axial compression, tension, lateral load, plate load, bi-directional compression, and anchor rod load tests. It aligns with major standards including ASTM D8169 (bi-directional compression), ASTM D1143 (axial compression), ASTM D3689 (axial tension), and ASTM D3966 (lateral load), and supports domestic/local codes.
Q
How does the system improve field safety and control?
+
A
The host and control box support wireless networking with over 1000 m range, plus smartphone mirroring for remote operation. The integrated DC fully automatic oil pump offers auto-reversal and adjustable flow for precise, hands-off loading—keeping operators away from hazardous zones.
Q
What are the key hardware specs for sensors, accuracy, and power?
+
A
Displacement resolution is 0.01 mm with 0.1% FS accuracy; pressure/load measurement accuracy is up to ±0.25% FS. Wireless displacement sensors are IP67, run >15 days per charge, and work within 50 m of the test point. The pump supports up to 70 MPa, and the system offers multiple power options, including a 60 V lithium battery.
