RSM-JC6(D) Static Load Tester
e+ Smart Control, Safe and Reliable — The All-in-One Static Load Testing Solution
Classification:
The RSM-JC6(D) combines smart automation, wireless control, and high-precision sensors to deliver safe and efficient static load testing. Supporting multi-standard compliance, remote e+ operation, and one-to-three simultaneous testing, it ensures reliability in complex and demanding engineering environments.
Cotnact：
Introduction
The RSM-JC6(D) Static Load Tester is a highly automated and intelligent testing system designed for comprehensive static load testing of piles, anchors, and foundations. With its wireless absolute displacement sensors, data remains precise and traceable, even under challenging conditions. A single host can control three test points simultaneously, supporting one-to-three fully automated testing with real-time monitoring and intelligent alarms. The new-generation CNC box integrates GPS/BeiDou positioning, real-time displacement/pressure display, and early-warning functions, ensuring safer operations. Featuring remote e+ control via mobile APP, operators can manage the system from a safe distance, away from complex or hazardous sites. Built with an industrial-grade capacitive touchscreen, IP65 protection, 4G/WiFi/Bluetooth connectivity, and full compatibility with mainstream oil pumps and sensors, the JC6(D) sets the benchmark for accuracy, safety, and smart adaptability in static load testing.
Applications

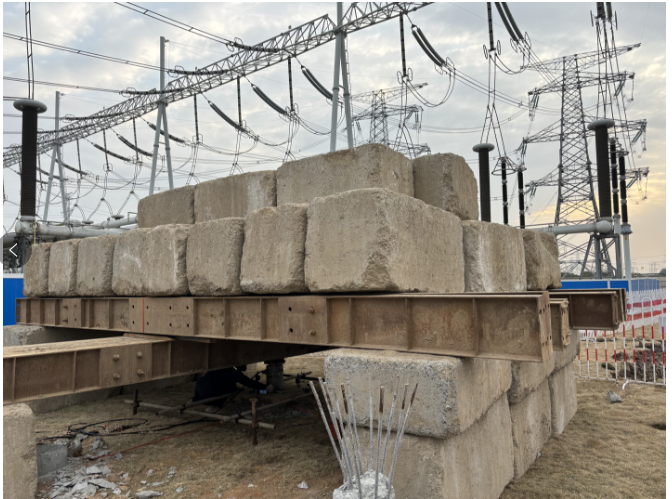

Static Axial Compressive Load Testing
Static Axial Tensile Load Testing
Static Lateral Load Testing
Plate Load Testing
Bi-Directional Static Axial Compressive Load Testing
Anchor Rod Load Testing
Applicable standards
Standard Test Methods for Deep Foundations Under Bi-Directional Static Axial Compressive Load（ASTM D8169/D8169M-18）
Standard Test Methods for Deep Foundations Under Static Axial Compressive Load（ASTM D1143/D1143M-07）
Standard Test Methods for Deep Foundation Elements Under StaticAxial Tensile Load (ASTM D3689/D3689M-22)
Standard Test Methods for Deep Foundation Elements Under StaticLateral Load(ASTM D3966/D3966M-22)
Compliant with international and domestic standards and regulations for various industries and local standards.
Core advantages
One-to-Three Smart Testing
A single host controls up to three points simultaneously, with automatic loading/unloading, stabilization, and real-time alarms for fully unattended operation.
Remote e+ Control
Long-distance wireless networking and mobile APP mirroring keep operators away from dangerous environments, ensuring safety and efficiency.
Wireless Displacement Sensors
High-precision absolute sensors with IP67 waterproofing, >15 days endurance, and no data loss after power-off.
New Digital CNC Box
GPS/BeiDou-enabled with real-time displacement/pressure monitoring, power fault alarms, and positioning for accurate and safe field testing.
Smart Compatibility
Supports multiple load measurement methods and is compatible with AC/DC automatic pumps and mainstream oil pumps.
Reliable Power & Uploading
Equipped with removable lithium batteries, uninterrupted power supply, and multi-channel data upload (4G/WiFi/Bluetooth) to supervisory platforms.

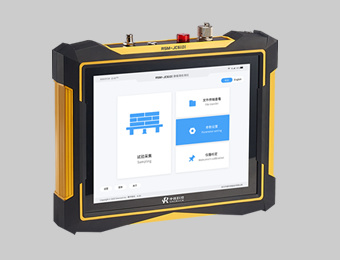

Rugged High-End Host
Industrial capacitive screen, IP65 dust/waterproof, ABS+PC flame-retardant housing, shock-resistant, and built for extreme environments.
Technical Parameter
|
Model |
RSM-JC6(D) |
|
Display method |
12.1-inch high-brightness true-color LCD screen |
|
Resolution |
1024 × 720 (adjustable backlight) |
|
Operation mode |
Capacitive touch (screen lock supported) |
|
Data Backup |
Automatic backup |
|
Storage capacity |
16G electronic hard disk |
|
Communication Method |
Wireless / Wired |
|
Wireless Communication Distance |
≥1000 m |
|
Number of Wireless Measurement & Control Points |
3 |
|
Interfaces |
USB input/output |
|
Power Supply Mode |
AC power, removable lithium battery |
|
Power Consumption |
≤20 W |
|
Operating Temperature |
-20 °C to +55 °C |
|
Ambient Humidity |
≤85% |
|
Dimensions |
340 × 275 × 65 mm |
|
Weight |
3.1 kg (including lithium battery) |
|
RSM-JC Data Box |
|
|
Displacement Measurement Channels |
8 channels |
|
Displacement Range |
Single range: 50 mm，Multi-step cumulative measurement supported |
|
Displacement Accuracy |
Error not greater than 0.1% FS |
|
Displacement Resolution |
Not less than 0.01 mm |
|
Displacement Power Supply |
Wired displacement sensors powered directly by the data box Wireless displacement sensors equipped with rechargeable lithium battery |
|
Load Measurement Channels |
1 pressure channel / 1 load channel / 8 load channels |
|
Pressure/Load Measurement Range |
Pressure: 0–70 MPa Load: 0–100,000 kN |
|
Pressure/Load Measurement Accuracy |
Pressure: ±0.5% FS Single load: ±0.4% FS Multiple load: ±0.25% FS |
|
Oil Pump Control Method |
Intelligent switch controller |
|
Input Power Supply |
AC: 220 V / 380 V DC: specified lithium battery |
Standard Configuration
Static Load Tester 1pc
JC6 Control Box 1pc
Static Load Communication Cable 1pc
Control Box Communication Cable 1pc
Wireless Displacement Sensor 6pcs
Magnetic table 4pcs
Pressure Sensor 1pc
Pressure Sensor Connection Cable 1pc
Control Box Power Input Cable 2pcs
Control Box Power Output Cable 1pc
Sucker antenna 3pcs
Three-way Connector 1set
Quick Connector 1 set
TYPE-C Charging Cable 1pc
Instrument container 2pcs
Toolkit 1 set
Power adapter 1pc
FAQs
Q
What tests does the RSM-JC6(D) support and which standards does it comply with?
+
A
It supports static axial compression, axial tension, lateral load, plate load, bi-directional compression, and anchor rod load testing. It complies with major standards, including ASTM D8169 (bi-directional compression), ASTM D1143 (axial compression), ASTM D3689 (axial tension), and ASTM D3966 (lateral load), and can meet domestic/local codes.
Q
How does the system enhance safety and automation on site?
+
A
A single host can control up to three test points with automatic loading/unloading, stabilization, and real-time alarms. The remote e+ control via mobile app enables long-distance wireless operation so operators can stay away from hazardous zones. The new digital CNC box adds GPS/BeiDou positioning plus real-time displacement/pressure display and early-warning functions.
Q
What key hardware specs affect accuracy, connectivity, and field readiness?
+
A
Wireless range is ≥1000 m; displacement resolution is ≥0.01 mm with error ≤0.1% FS; pressure/load accuracy up to ±0.25% FS. Wireless absolute displacement sensors are IP67 with >15 days endurance. The host features a 12.1″ high-brightness capacitive touchscreen, IP65 protection, multi-channel data upload (4G/Wi-Fi/Bluetooth), and supports AC power or removable lithium battery.
