RSM-RLT(C) Reinforcement Length Tester
Convenient On-site Sampling, Clear and Intuitive Signal
Classification:
RSM-RLT(C) is a portable reinforcement cage length tester based on magnetic logging method. It provides fast, repeatable, and reliable results with intuitive signals, designed for both new constructions and existing foundation pile inspections.
Cotnact：
Introduction
The RSM-RLT(C) Reinforcement Length Tester, independently developed by Sinorock, adopts the magnetic logging method to measure reinforcement cage length with high precision. Featuring a high-precision 3D magnetoresistive probe, it ensures accurate detection of weak signals, providing clear, reliable, and repeatable results. With its lightweight design, user-friendly interface, detachable lithium battery, and industrial-grade capacitive screen, it offers superior portability, efficiency, and durability. Suitable for cast-in-place piles, prestressed pipe piles, and various foundation testing standards, this device guarantees accurate assessment of reinforcement cages in diverse engineering applications.
Applications

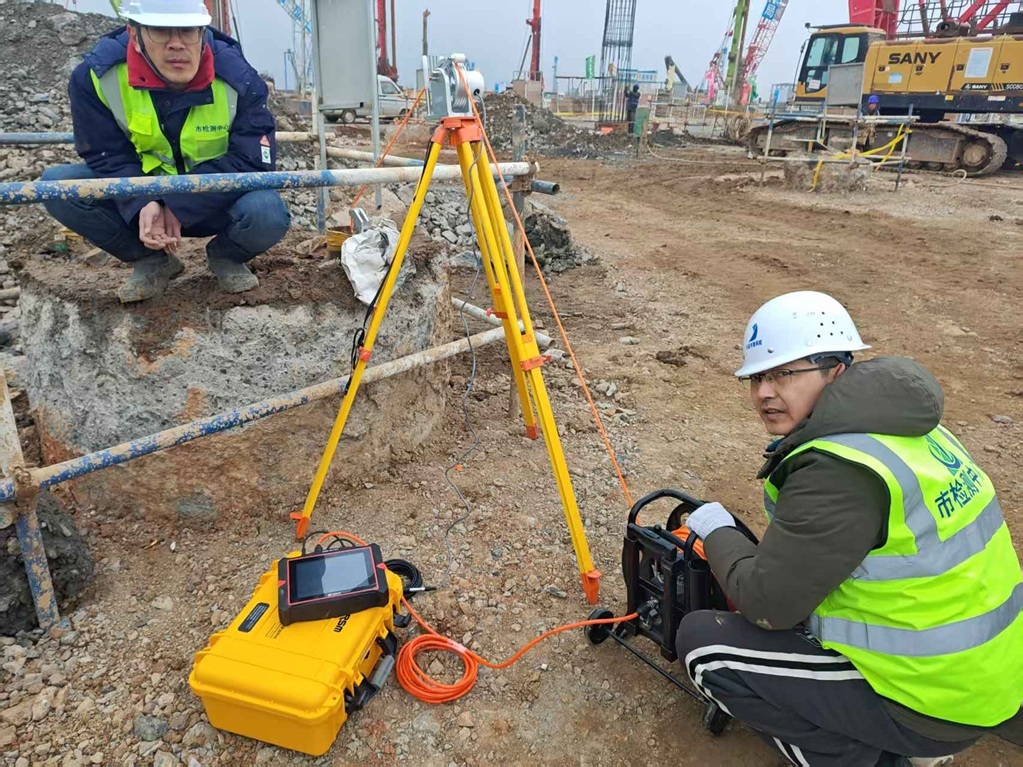

Detect the embedding length of reinforcement cages in cast-in-place concrete piles
Detect the length and joint position of prestressed pipe piles
Applicable standards
Technical Standard for Foundation Testing of Existing Buildings (JGJ/T 422-2018)
Core advantages
High Precision 3D Magnetoresistive Probe
Compensates weak signals, ensuring accurate, intuitive real-time data display for reinforcement cage length judgment.
High-speed AD Acquisition Chip
Guarantees high-rate signal acquisition, improving on-site detection efficiency and ensuring high signal quality.
More Portable

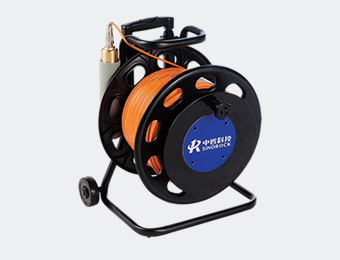

Compact main unit and winch design, lightweight, easy to carry and operate in the field.
Efficient Testing

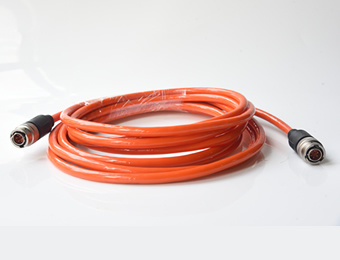

Built-in slip ring in the cable reel allows real-time sampling and testing while winding, improving efficiency.
Flexible and Powerful
Supports bidirectional detection, capable of distinguishing changes in the number of main reinforcements in real time.
No Data Loss
Equipped with detachable lithium battery for independent power supply, preventing data loss caused by unexpected power interruption.
Industrial-grade Capacitive Screen
Upgraded smooth and precise operation, adaptable to various lighting conditions, ensuring clear observation during on-site detection.
Technical Parameter
|
Model |
RSM-RLT(C) |
|
Enclosure |
High-strength engineering plastic |
|
Main Control System |
Low-power embedded system Main frequency: ≥1 GHz Memory: 1 GB |
|
Display |
8.4-inch LCD screen Resolution: 800 × 600 |
|
Sensor Resolution |
Better than 50 nT (0.5 mGauss) |
|
Control Mode |
Capacitive touchscreen |
|
Sampling Frequency |
20 samples/second |
|
Storage |
Electronic hard disk, 16 GB |
|
Floating-point Amplification |
1 ~ 100 |
|
Data Export |
USB |
|
A/D Conversion Accuracy |
16-bit (parallel) |
|
Power Supply |
Detachable lithium battery |
|
Depth Resolution |
< 0.1 cm |
|
Operating Duration |
6 hours |
|
Maximum Testing Depth |
150 m |
|
Depth Error |
Better than 0.5% FS |
|
Probe Housing Dimensions |

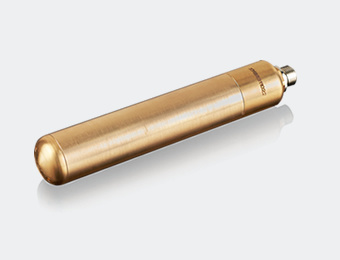

Φ40 × 220 mm |
|
Probe Housing Material |
Copper |
|
Acquisition Direction |
Bidirectional |
|
Sensor Type |
Three-axis magnetoresistive sensor |
|
Minimum Sampling Interval |
50 mm |
|
Sensor Range |
±200,000 nT (±2000 mGauss) |
|
Probe |
Detachable |
|
Sensor Accuracy |
Better than 100 nT (1 mGauss) |
|

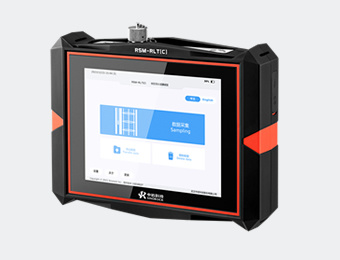

Dimensions (Main Unit) |
265×200×56 mm |
|
Environmental Humidity |
≤85% RH |
|
Weight |
2 kg |
|
Operating Temperature |
-10 ℃ ~ +55 ℃ |
Downloads
25-09-26 15:05
8.5MB
25-09-26 15:54
2.3MB
FAQs
Q
What does the RSM-RLT(C) actually measure and where is it used?
+
A
It uses the magnetic logging method with a high-precision 3D magnetoresistive probe to measure the length of reinforcement cages—including joint positions—in cast-in-place concrete piles and prestressed pipe piles, providing fast, repeatable, and intuitive results.
Q
What are the key specs that impact field performance?
+
A
Depth resolution is < 0.1 cm with depth error better than 0.5% FS, maximum testing depth 150 m, minimum sampling interval 50 mm, and sensor resolution better than 50 nT (range ±200,000 nT). The system operates about 6 hours on a detachable lithium battery and works from -10 ℃ to +55 ℃.
Q
How portable and efficient is it on site?
+
A
The compact host (approx. 2 kg, 265×200×56 mm) and winch are easy to carry. A built-in slip ring enables real-time sampling while winding, and bidirectional detection helps distinguish changes in main reinforcement count. The 8.4" industrial-grade capacitive screen keeps signals clear under varied lighting.
