RSM-SY7(D) Four channels Cross Hole Sonic Logging Tester
Innovation-Driven, Technology Leading — 4 Pipes, 6 Profiles in a Single Lift
Classification:
The RSM-SY7(D) introduces patented four-channel self-transmitting and receiving technology, completing six profiles across four pipes in one lift. With enhanced transducers, automatic interpretation, and intelligent cloud integration, it ensures faster, more accurate, and efficient pile integrity testing.
Cotnact：
Introduction

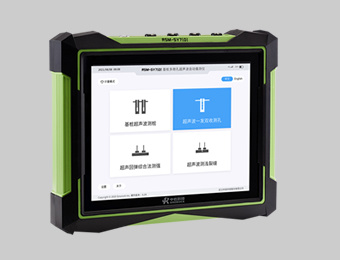

The RSM-SY7(D) Four Channels Cross Hole Sonic Logging Tester is a world-first patented system designed to revolutionize ultrasonic pile testing. By enabling self-transmitting and self-receiving detection, it eliminates the need to reposition probes, completing four pipes and six profiles in one lift. This breakthrough dramatically boosts efficiency and reduces operator workload in the field. Featuring enhanced transducers for stronger first-wave energy, automatic search and magnification adjustment, and a 12.1-inch industrial-grade capacitive screen, the system delivers clear, real-time visualization of pile quality. Built tough with IP65 dustproof and waterproof protection, a 9mm ultra-thin removable battery (≥10h life), and cloud-ready wireless data uploading, the RSM-SY7(D) offers unmatched reliability for demanding construction environments.
Application

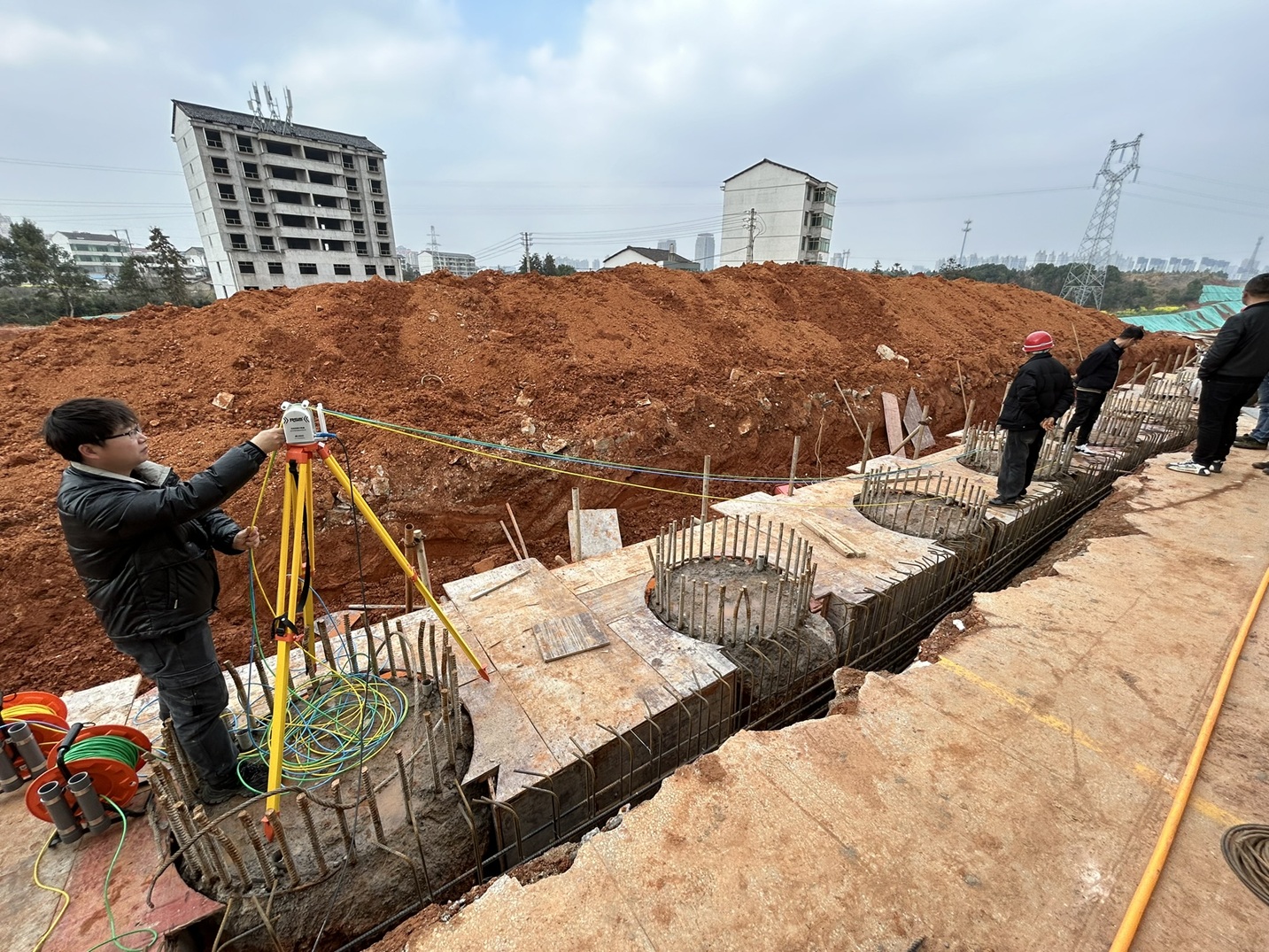

Acoustic pile integrity detection by transmission method
Concrete crack depth detection
Concrete strength detection by ultrasonic-rebound combined method
Longitudinal wave velocity test of rock mass in geological investigation
Detection of loosen zone of tunnel rock mass
Test of dynamic and elasticity parameters of non-metallic materials
Integrity detection of underground diaphragm wall
Applicable standards
Standard Test Method for Integrity Testing of Concrete Deep Foundation by Ultrasonic Crosshole Testing（ASTM D6760-16）
Standard Test Method for Integrity Testing of Concrete Deep Foundation by Ultrasonic Crosshole Testing（ ASTM D6760-08）
Core advantages
International Patent Innovation
First-of-its-kind four-channel self-transmitting & receiving ultrasonic detection, completing full-combination pile testing with multiple invention patents granted
Four Pipes, Six Profiles at Once
One lift covers 6 profiles, eliminating probe repositioning. Clear observation of waveforms, wave trains, and amplitudes in real time.
Efficiency & Precision
Automatic first-wave recognition, gain adjustment, lifting speed up to 60m/min, and 1cm minimum depth resolution.
Ultra-Thin High-Capacity Battery
9mm removable battery with ≥10h endurance; supports backup batteries and Type-C charging with power bank compatibility.
Industrial-Grade Display
12.1-inch capacitive touchscreen, strong-light adaptive, bilingual interface (Chinese/English), and upgraded user-friendly software.
Rugged Field Design
ABS+PC flame-retardant shell, IP65 dust/waterproof protection, and shock-resistant build for harsh on-site environments.
Customizable Solutions
Fully compliant with international standards and adaptable for enterprise-specific customization and R&D needs.
Technical Parameter
|
Model |
RSM-SY7(D) |
|
Display method |
12.1-inch true-color LCD screen |
|
Resolution |
1280×768 (adjustable backlight) |
|
Gain accuracy |
0.5dB |
|
Operation mode |
Capacitive touch |
|
Frequency bandwidth |
1～500kHz |
|
Storage capacity |
16G electronic hard disk |
|
Acoustic amplitude accuracy |
≤3% |
|
Signal acquisition method |
Wired |
|
Acoustic time accuracy |
≤0.5% |
|
Data export method |
USB |
|
Receiving sensitivity |
≤10μV |
|
Depth counting method |
Automatic counting |
|
Intertrack crosstalk |
≤1/400 |
|
Master control form |
Low power embedded system |
|
Basic frequency |
1GHz Memory: 512M |
|
Trigger |
Signal trigger |
|
Number of channels |
Four independent and controllable self-transmitting and self-receiving channels |
|
Number of profiles tested in a single lifting |
six profiles |
|
Protection level |
IP65 |
|
Scanning speed |
≥20 cycles/sec |
|
Power supply mode |
Removable lithium battery |
|
Battery capacity |
12000mAh |
|
Battery thickness |
9mm |
|
Battery life |
≥7h |
|
Sampling method |
Synchronous self-transmitting and self-receiving |
|
Shell |
Engineering Plastic:ABS+PC |
|
Sampling interval |
0.1～200μS |
|
Operating temperature |
-20～+55℃ |
|
Recording length |
0.5～4k |
|
Dimensions |
340×275×62 mm |
|
Transmit voltage |
500V/1000V adjustable |
|
Weight |
3.0 kg (including lithium battery) |
|
Dynamic range |
≥100dB |
|
Lifting device |
|
|
Connection method of lifting device |
Wired/wireless |
|
Minimum space between testing points |
1cm |
|
Wireless transmission distance |
30m |
|
Maximum lifting speed |
1.0m/s |
|
Wireless working hours |
≥20h |
|
Counting method |
Double direction counting |
Standard Configuration
Cross Hole Sonic Logging Tester 1pc
One-transmitting and one-receiving cross-hole probe 4pcs
Depth counter 1pc
Depth counter connecting cable 1pc
Longitudinal wave plane acoustic wave probe 2pcs
Plane probe connecting cable 2pcs
pipe orifice pulleys 4pcs
Tripod 1pc
Instrument container 2pcs
Power adapter 1pc
Toolkit 1 set
FAQs
Q
What’s the key innovation of the RSM-SY7(D) compared with traditional cross-hole systems?
+
A
It uses a patented four-channel self-transmitting & self-receiving design that completes 4 pipes / 6 profiles in a single lift—no probe repositioning—greatly boosting efficiency while maintaining clear real-time waveform visualization.
Q
Which applications and standards does it support?
+
A
Typical applications include acoustic pile integrity testing, concrete crack depth, ultrasonic-rebound strength, rock mass wave-velocity, tunnel loosen-zone detection, and diaphragm-wall integrity checks. It complies with ASTM D6760 for ultrasonic crosshole testing of deep foundations.
Q
Is it field-ready? What specs matter on site?
+
A
Yes. It features IP65 protection, a 12.1″ industrial capacitive screen, 9 mm ultra-thin removable battery with ≥7–10 h endurance, 1 cm minimum depth spacing, ≥100 dB dynamic range, automatic depth counting, and lifting speeds up to 1.0 m/s (60 m/min). Data export via USB; lifting device supports wired/wireless connection.
