RSM-DCT(F) Borehole TV Tester
Ultra-HD wireless imaging, lightweight all-in-one design — making borehole inspection smarter and easier than ever.
Classification:

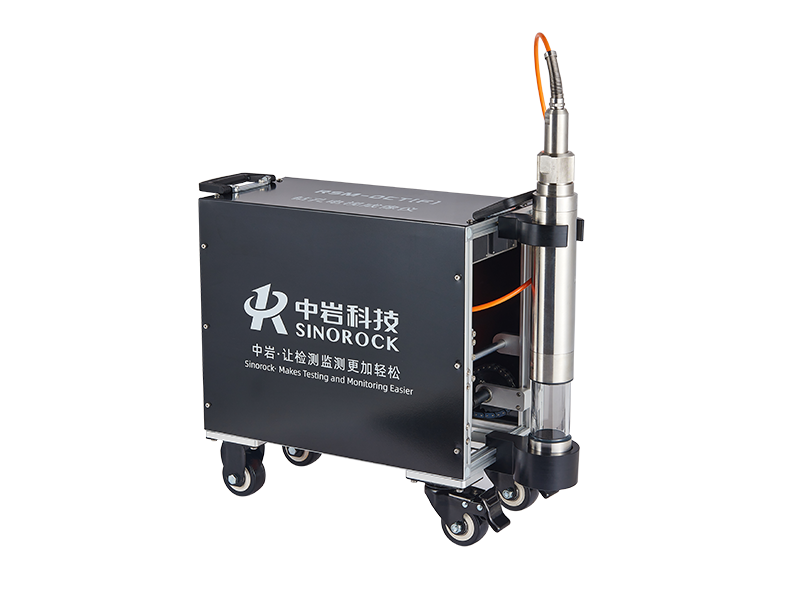

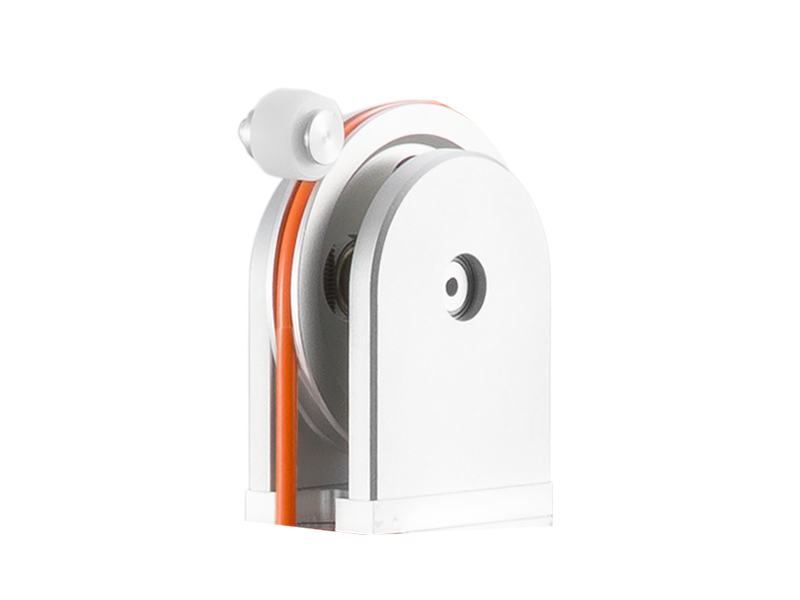

The RSM-DCT(F) is a wireless ultra-HD borehole TV tester featuring smart lifting, real-time panoramic imaging, and one-person operation. With no need for a host unit, it simplifies defect detection and verticality analysis in a variety of drilling applications.
Cotnact：
Introduction
The RSM-DCT(F) Borehole TV Tester integrates cutting-edge image processing algorithms with a smart, motorized lifting system in a compact all-in-one design. Without the need for a central control unit, the system can be operated via a laptop for real-time monitoring. During video recording, it simultaneously generates panoramic unfolded views and vertical borehole diagrams. It also includes a built-in tilt measurement module to assess verticality while inspecting. Designed for applications such as pile core verification and structural defect observation, it accurately identifies cavities, cracks, segregation, and geological features—delivering efficient, clear, and professional inspection results.
APPLICATION
● Verify the core of the pile foundation; observe the position and extent of various defects in the concrete, such as voids, cracks and segregation.
● Observe various anomalies and defects of the prestressed pipe piles; check the status of joints; quantitatively analyze the quality of the pile body, such as fracture area and location, length, width and direction of the fracture and crack.
● Observe various features and subtle structures of boreholes’ geological body, such as stratigraphic lithology, rock structures, faults, fissures, interlayers and karst and catalogue geological histograms.
Applicable standards
Standard for Borehole Imaging Testing of Foundation Soils and Foundations (T/CECS 253-2022)
Core advantages
Ultra-HD Imaging
New image enhancement algorithms and processing technology for fast, clear, and realistic imaging.
Intelligent Electric Lift
Integrated design with wireless control and smart lifting, enabling automatic line management for efficient and effortless detection.
WYSIWYG (What You See Is What You Get)
Real-time recording and image stitching during acquisition, ensuring results displayed on-screen match printed output exactly.
360° Panoramic Observation
Supports both flat panoramic views and 3D cylindrical projections, with continuous 360° rotation for comprehensive inspection.
Borehole Verticality Testing
Built-in inclinometer module provides real-time verticality measurements for boreholes or pipe piles on-site.
Advanced Probe Design
Stainless steel housing with a high-strength optical glass probe cover, specially treated to prevent water ingress and fogging.
Technical Parameter
| Control Mode | Wireless control via laptop |
| Power Supply | AC 220V |
| Operating System | Windows 10 or above |
| Battery Life | ≥ 10 hours |
| Camera Resolution | 5 MP (500W pixels) |
| Imaging Resolution | 55 pixels/cm |
| Probe Outer Diameter | 60 mm |
| Probe Length | 300 mm |
| Image Output Resolution | 2592 × 1944 pixels |
| Video Frame Rate | 25 frames per second |
| Electric Winch Dimensions | 440 × 220 × 400 mm |
| Electric Winch Weight | 18 kg |
| Operating Voltage | AC 220V ±10% |
| Probe Pressure Resistance | 3 MPa |
| Applicable Borehole Diameter | Φ60 mm ~ Φ400 mm |
| Maximum Lifting Speedn | 10 m/min |
| Azimuth Correction | Supported |
| Maximum Testing Depth | 300 m |
| Angle Sensor Accuracy:Static | Static: 0.01°, Dynamic: 0.1° |
| Depth Measurement Accuracy | 0.5% |
