RSM-DCT(E) Borehole TV Tester
High-definition borehole imaging with lightweight portability and intelligent performance.
Classification:
The RSM-DCT(E) Borehole TV Tester features advanced imaging algorithms, lightweight manual winch design, and wireless control. It delivers high-definition 1080p video, panoramic 360° observation, verticality measurement, and stable field performance for borehole and pile inspection.
Cotnact：
Introduction
The RSM-DCT(E) Borehole TV Tester adopts advanced imaging upgrade algorithms and processing technology for fast, clear, and realistic imaging. Designed with a lightweight manual winch, it enables efficient on-site operation without power supply, requiring only one operator. Equipped with an HD digital camera and stainless-steel probe housing, it provides high-definition 1080p real-time observation and recording of boreholes or prestressed pipe piles. With wireless laptop connectivity up to 10 meters and an integrated inclinometer, it can measure verticality while imaging. The system supports panoramic and 3D columnar views, video recording with synchronous image stitching, and customizable reporting functions, making it a professional solution for foundation pile inspection, geological exploration, and structural quality assessment.
Application Direction
Foundation pile inspection and quality evaluation
Geological exploration and engineering site investigation
Structural defect detection in prestressed pipe piles
On-site engineering quality assurance
Applicable standards
Standard for Borehole Imaging Testing of Foundation Soils and Foundations (T/CECS 253-2022)
Core advantages
Lightweight Winch Design
Compact manual winch, portable and efficient, no external power required.
Ultra HD Imaging
Advanced algorithm ensures fast, clear 1080p imaging with “what you see is what you get” results.
360° Panoramic Observation
Supports unfolded planar views and rotatable 3D columnar imaging.
Verticality Measurement
Built-in inclinometer for real-time borehole and pile verticality assessment.
Stable Performance
Stainless steel housing, optical glass probe cover, advanced sealing and drying technology for reliable operation.
Wireless Control
Up to 10 m wireless range, easy to use with laptops or tablets.
Flexible Reporting
Exports .doc and .pdf reports, customizable headers, fully compatible with Office/WPS.
Technical Parameter
|
Model |
RSM-DCT(E) |
|
Control Mode |
Laptop wireless control |
|
Power Supply |
DC power |
|
Operating System |
Windows 10 and above |
|
Battery Life |
≥10 hours |
|
Camera Pixel |
5 MP (500W pixels) |
|
Imaging Resolution |
55 pixels/cm |
|
Probe Dimensions |
Outer Diameter: 60 mm Length: 300 mm |
|
Image Resolution |
2592×1944 |
|
Manual Winch Dimensions |
350 ×300×350 mm |
|
Video Frame Rate |
25 fps |
|
Manual Winch Weight |
10 kg |
|
Operating Voltage |
DC 7.4 V ±10% |
|
Probe Pressure Resistance |
3 MPa |
|
Applicable Borehole Diameter |
Φ60 mm–Φ400 mm |
|
Maximum Hoisting Speed |
10 m/min |
|
Azimuth Correction |
Available |
|
Maximum Test Depth |
300 m |
|
Angle Sensor Accuracy |
Static: 0.01° Dynamic: 0.1° |
|
Depth Accuracy |
0.5% |
Standard Configuration

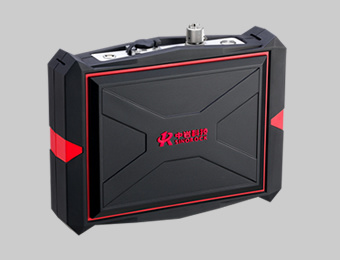

RSM-DCT(E) Borehole TV Tester 1pc

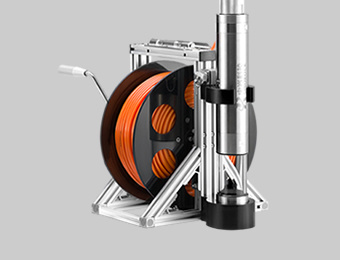

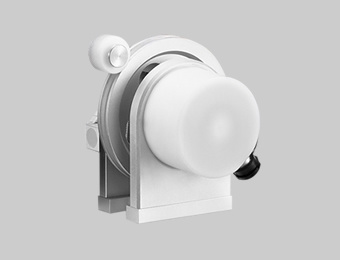

Manual Winch(Include Borehole Camera Probe) 1 set
Borehole Counting Pulley 1pc
Depth Counter Connection Cable 1pc

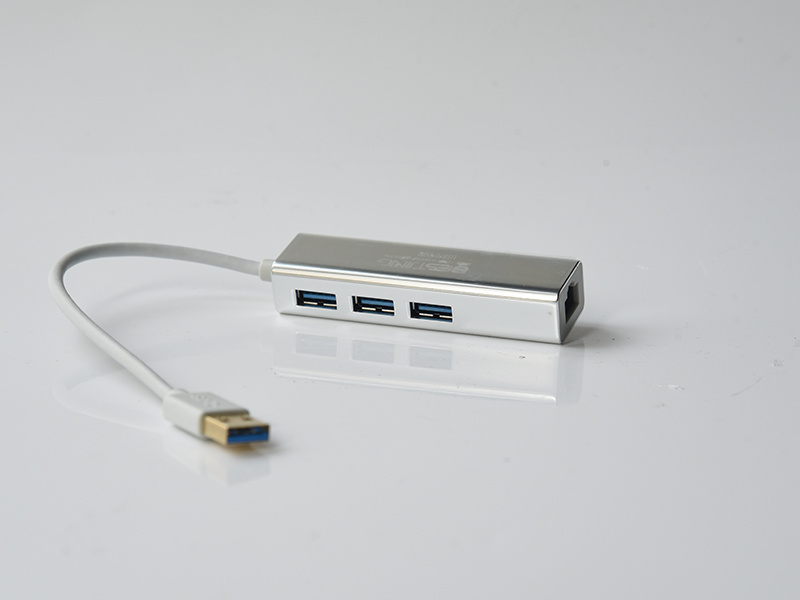

USB to Ethernet Adapter 1pc
Tripod 1pc

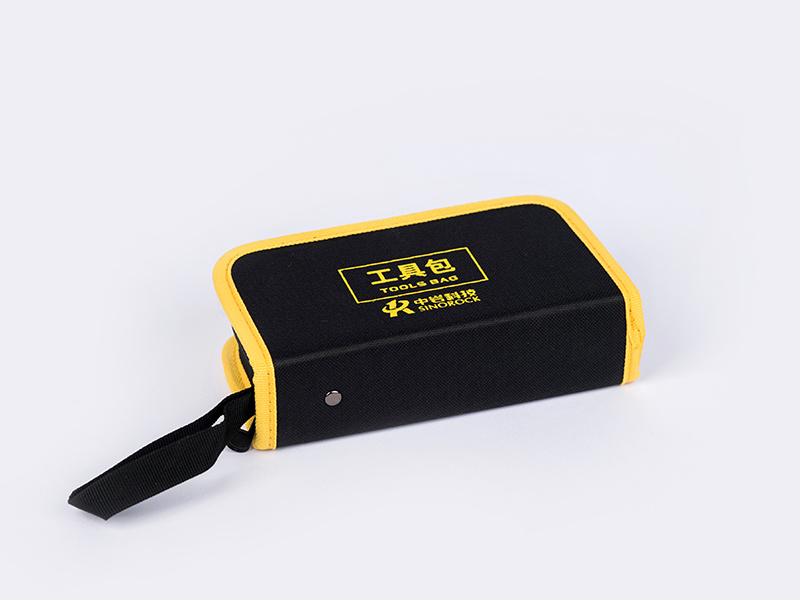

Tool Kit 1pc

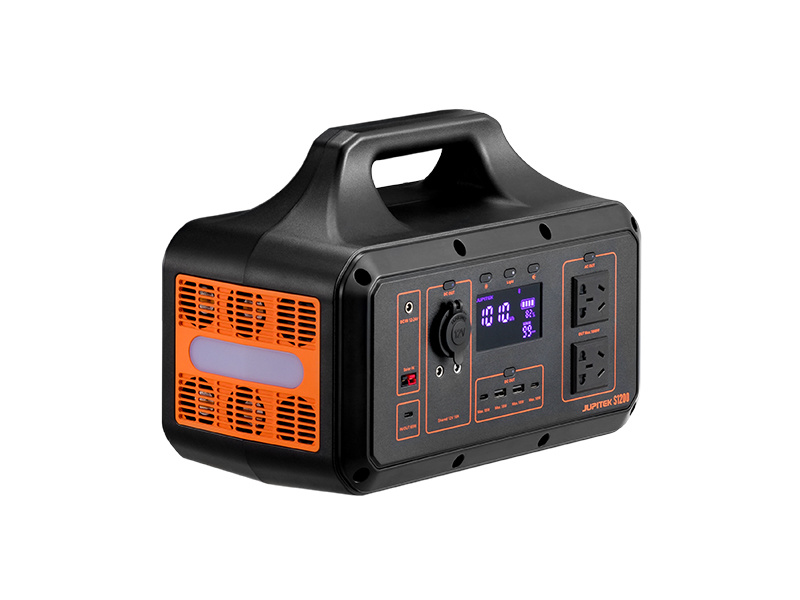

Portable ACDC Power Supply 1pc

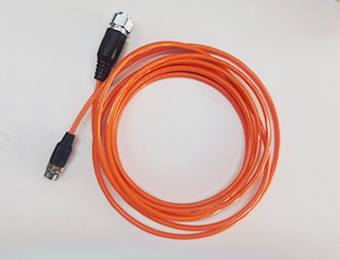

Communication Cable 1pc

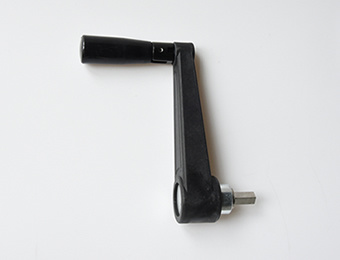

Manual Reel Handle 1pc

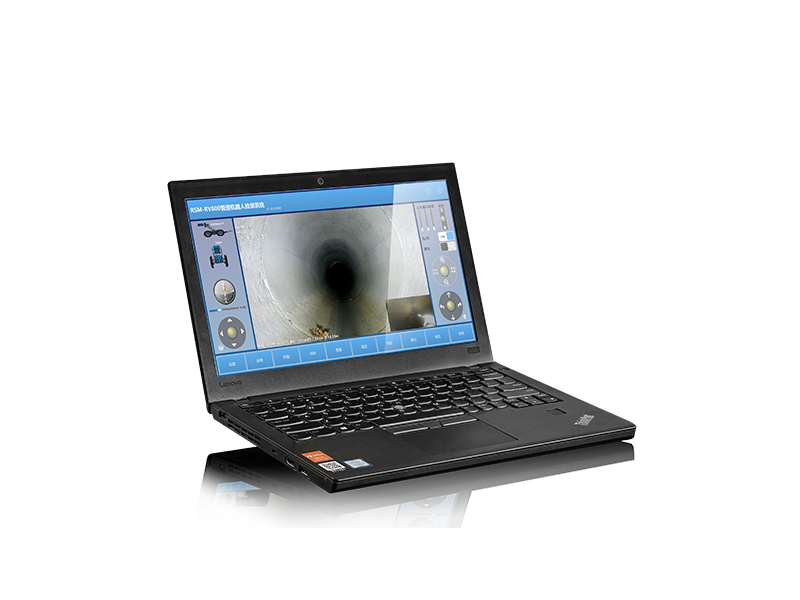

Laptop Computer 1pc
Market Case
FAQs
Q
What can the RSM-DCT(E) Borehole TV Tester do on site?
+
A
It provides HD 1080p real-time imaging of boreholes and prestressed pipe piles, supports 360° panoramic viewing and rotatable 3D columnar views, and can measure verticality with an integrated inclinometer—useful for foundation pile inspection, geological exploration, and structural quality assessment.
Q
How portable is it and what’s the basic working setup?
+
A
A lightweight manual winch (no external power required) with a stainless-steel camera probe enables one-person operation. Control is via wireless laptop/tablet (up to 10 m), and the system offers ≥10 h battery life for field work.
Q
What specs and standards do I need to know?
+
A
Probe Ø60 mm, 300 mm length, 5 MP sensor (2592×1944), 25 fps video, max test depth 300 m, max hoisting speed 10 m/min, depth accuracy 0.5%, and applicable borehole diameter Φ60–Φ400 mm. It references T/CECS 253-2022 (Standard for Borehole Imaging Testing of Foundation Soils and Foundations) and supports .doc/.pdf report exports.
