RSM-HQV(B) Wireless Periscope
Portable wireless periscope for rapid pipeline imaging and precise defect localization.
Classification:
The RSM-HQV(B) Wireless Periscope is a lightweight, highly integrated imaging system for municipal, industrial, and utility pipeline inspections. Supporting wireless control up to 100 m, it delivers HD imaging, 360° tilt rotation, laser ranging, and real-time defect reporting.
Cotnact：
Introduction

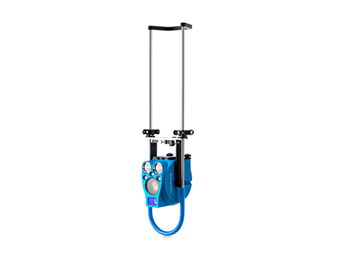

The RSM-HQV(B) Wireless Periscope is designed for fast and accurate internal imaging of municipal pipelines, industrial containers, and other confined environments. Its fully integrated probe combines camera, laser, battery, and lighting in a compact, waterproof design, enabling stable operation even in harsh conditions. Equipped with a 2.14 MP HD digital camera, it delivers 1080p imaging with intelligent auto-focus, enhanced by high-brightness LED lighting optimized for long-distance inspection up to 100 meters. The periscope supports 360° unlimited tilt rotation, ensuring no blind spots during inspection. Additional features include high-precision laser ranging (±0.02 m), rapid defogging with electric heating, intelligent speed control, and robust carbon fiber telescopic rods. With wireless transmission and Android/Windows compatibility, operators can control and generate reports in real-time, significantly improving efficiency and accuracy in pipeline and infrastructure inspections.
Applications
Pipe network general survey
New pipe acceptance
Pipeline inspection and maintenance
Construction monitoring
Pipeline search and defect localization
Applicable Scenarios
Municipal (industrial) drainage pipelines
Water conservancy pipelines and culverts
Integrated utility corridors
Cable ducts and tunnels
Large container tanks and tank trucks
Internal video inspection, field reconnaissance, and disaster search & rescue
Applicable standards
Technical Code for Inspection and Evaluation of Urban Drainage Pipelines (CJJ 181-2012)
Technical Code for CCTV and Sonar Inspection and Evaluation of Drainage Pipelines (DB31/T 444-2022)
Technical Code for Inspection and Evaluation of Urban Public Drainage Pipelines (DB44/T 1025-2012)
Standard for Functional Classification of Drainage Pipelines and Conduits (Q/BDG JS001-GW05-2012)
Standard for Functional Classification of Drainage Pipelines and Conduits (Q/BDG JS002-GW05-2012)
Core advantages
Powerful Wireless
High-power wireless transmission, stable operation up to 100 m.
Compact & Portable
Integrated camera, laser, lighting, and battery in a lightweight, waterproof probe.
Laser Ranging
High-precision laser measurement up to 100 m, accuracy ±0.02 m.
360° Tilt Rotation
Unlimited up/down rotation for full coverage, no blind spots.
HD Imaging
2.14 MP digital camera with 1080p resolution and intelligent autofocus.
Automatic Defogging
Electrically heated lens for rapid fog removal with auto shutoff.
Smart Operation
Supports automatic/manual speed control and intelligent leveling.
Versatile Control
Compatible with Windows & Android terminals, including tablets, smartphones, and PCs.
Fast Charging
Three-battery charger supports simultaneous charging within 3 hours.
Technical Parameter
|
Model |
RSM-HQV(B) |
|
Periscope Main Unit |
|
|
Dimensions |
126 mm×146 mm×212 mm (excluding probe) |
|
Weight |
2.5 kg |
|
Applicable Environment |
Suitable for underground pipelines with diameters above 100 mm; large storage tanks; tunnels and culverts; field reconnaissance; disaster search and rescue. |
|
Communication |
Wireless communication, direct or relay, no cable required |
|
Protection Grade |
IP68 |
|
High-beam Lights |
2×10 W high-brightness cool white LED lamps, color temperature 5000 K |
|
Low-beam Lights |
3×1 W high-brightness cool white LED lamps, color temperature 6600 K |
|
Modular Battery |
Voltage: DC 12 V, Capacity: 3.5 Ah |
|
Battery Life |
Single battery runtime: 2.5 h Standard configuration includes 3 batteries; batteries are hot-swappable for unlimited endurance |
|
Pitch Control |
360°infinite pitch rotation, allowing direct observation of the bottom of the shaft when the device is lowered Equipped with automatic horizontal detection for pitch control |
|
Operating Temperature |
-10 ℃ ~ +55 ℃ |
|
Transmission |
Single wireless transmission method, adaptive special algorithm ensures industrial-grade wireless communication stability for easier operation |
|
Wireless Communication/ Data Transmission |
Transmission Single wireless transmission method, adaptive special algorithm ensures industrial-grade wireless communication stability for easier operation |
|
Camera Core |
Sensor 1/2.8 Exmor CMOS Resolution 2.14 MP HD digital camera 1920×1280 (maximum resolution) Lens 20×optical zoom, 10×digital zoom Minimum Focusing Distance 10 mm- 1200 mm (wide-angle to telephoto)
|
|
Lens Defogging Function |
Defogging Rapid defogging of lens surface via electric heating |
|
Shock-absorbing Probe Rod |
Length Support |
|
Measurement |
Distance Accuracy |
|

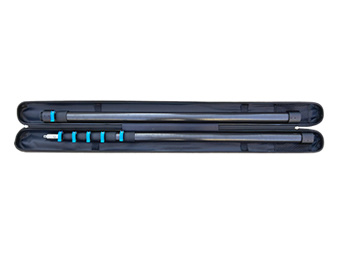

High-strength Telescopic Rod |
|
|
Length |
Original rod: 4.8 m extended, 1.2 m retracted Extension rod: 2 m extended, 1.2 m retracted (customizable length available upon request) |
|
Material |
High-strength carbon fiber |
|
Charger |
|
|
Dimensions
|
90 mm×55 mm×45 mm
|
|
Charging Parameters |
Charging method: direct battery charging Charging time: < 2 h Input: 100–240 V ~ 50/60 Hz Output: DC 12.6 V / 2 A |
|
Relay (Optional) |
|
|
Dimensions |
Φ120 mm × 130 mm |
|
Weight |
0.5 kg |
|
Battery Capacity |
12 V, 5 Ah |
|
Battery Life |
36h |
|
Communication |
Wireless transmission relay |
|
Control Terminal |
|
|
Mobile Terminal |
Android smartphone |
|
Tablet Terminal |
Android tablet |
|
Terminal Control Software |
|
|
Information Display |
Real-time display of environmental video, date & time, pitch angle, internal periscope pressure, periscope battery status, and operator coordinate positioning. Defect images can be captured. Videos can include headers and custom text. |
|
Control Functions |
Control of main camera pitch movement; zoom in/out; high/low beam brightness adjustment; laser rangefinder control; video recording and snapshot functions. |
|
Explosion-proof Function |
|
|
Certification |
Explosion-proof certification available, issued by national authorized testing institutions. |
