RSM-FBN(A) Non-contact Bridge Static and Dynamic Deflection Tester
National Special Product, Millimeter-level Real-time High-precision Measurement.
Classification:
RSM-FBN(A) provides real-time, millimeter-level, high-precision displacement and vibration measurements without physical markers. Designed for bridges, towers, and large-scale structures, it delivers reliable long-distance monitoring through advanced imaging algorithms and professional-grade sensors.
Cotnact：
Introduction
The RSM-FBN(A) Non-contact Bridge Static and Dynamic Deflection Tester is a national special project instrument featuring advanced image quality enhancement algorithms, fast camera self-calibration, and military-grade components. Without requiring on-site markers, it can simultaneously measure up to 40 points at 300Hz, capturing real-time static and dynamic deflection, displacement, and vibration data over distances up to 1,000 meters. Equipped with intelligent software functions such as automatic calibration, guided operation, ultra-limit alarm, and safety assessment, it offers intuitive, efficient, and accurate monitoring for a wide range of large-scale infrastructure projects.
Application
Dynamic and static displacement testing of large structures such as bridges, towers, and hoisting machinery.
Long-term monitoring of buildings, tunnels, dams, and slopes.
Application Fields
Transportation infrastructure: highways, railways, and urban transit bridges
Civil and industrial structures: towers, cranes, high-rise buildings
Hydraulic and geotechnical engineering: dams, tunnels, slopes
Research and safety assessment of structural performance
Applicable standards
Specifications for Highway Bridge Load Testing (JTG-T-J21-01-2015)
Code for Monitoring of Building and Bridge Structures (GB50982-2014)
Code for Surveying of Urban Rail Transit Engineering (GB/T 50308-2017)
Code for Engineering Surveying (GB 50026-2016)
Core advantages
High Precision
Real-time calculation of 0.001mm-level high-precision displacement data.
High Frequency
Synchronous high-frequency measurement at 300Hz across 40 points.

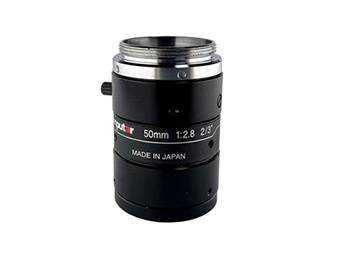

Professional-Grade Performance
Equipped with industrial-grade camera and advanced data transmission technology.
Image Enhancement
Adaptive image quality improvement to reduce sunlight, shadow, and smog effects.

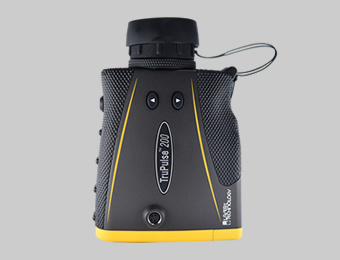

Long-distance Measurement
Supports large-scale monitoring up to 1,000 meters.
Multiple Functions
Impact coefficient, damping ratio, spectrum analysis, ultra-limit alarm, and more.
Technical Parameter
|
Model |
RSM-FBN(A) |
|
Working Distance |
0.01 m- 1000 m |
|
Measurement Range |
0.01 mm- 500 m |
|
Measurement Resolution |
0.005 mm (0.001 mm customizable) |
|
Measurement Accuracy |
±0.02 mm (at 10 m) ±1 mm (at 100 m) ±10 mm (at 500 m)
Customizable Accuracy: ±0.016 mm (at 10 m) ±0.7 mm (at 100 m) ±5 mm (at 500 m) |
|
Measurement Frequency |
0- 1000 Hz (optional) |
|
Dynamic Measurement Points |
40 points @ 300 Hz |
|
Static Measurement Points |
Unlimited |
|
Detection Mode |
On-site mode or recorded condition video |
|
Main Unit Weight |
3 kg |
