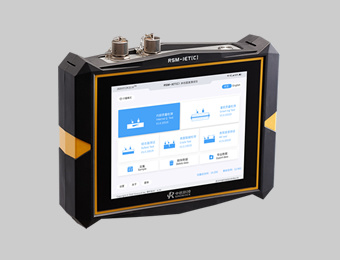

RSM-IET(C) Impact Echo Tester
Powerful Performance, Reliable Detection
Classification:
The RSM-IET(C) Impact Echo Tester is a non-destructive device for concrete structures. With built-in software for five scenarios, it provides stable signal acquisition, powerful data processing, and accurate, intuitive results even in complex environments.
Cotnact：
Introduction
The RSM-IET(C) Impact Echo Tester, developed by Sinorock, is a high-performance non-destructive testing instrument designed for comprehensive concrete inspection. It integrates five built-in acquisition modes to adapt to different test scenarios, ensuring unmatched flexibility. Featuring Sinorock’s proprietary impact echo signal collector, it delivers stable and distortion-free signal acquisition with instantaneous floating-point amplification technology. The system supports advanced data processing functions such as hybrid filtering, spectral analysis, and chromatogram imaging, presenting results in clear and intuitive forms. Its rugged ABS+PC housing, IP65 protection, large-capacity detachable battery, and industrial-grade capacitive screen guarantee reliability in harsh field environments, making it a trusted tool for accurate structural assessment.
Application
Internal defect detection of concrete members
Grouting quality testing
Quality test of concrete joint surfaces
Detection of cracks on concrete surfaces
Wave velocity measurement of concrete surfaces
Applicable standards
《Standard Test Method for Measuring the P-Wave Speed and theThickness of Concrete Plates Using the lmpact-Echo Method》(ASTM C 1383-15)
Core advantages
Powerful Function
Built-in acquisition software for 5 different test scenarios ensures versatility and adaptability.
Stable Signal Collection
Proprietary impact echo signal collector designed by Sinorock enhances acquisition stability.
Instantaneous Floating Point Amplification
Enables distortion-free acquisition of both strong and weak signals.
Rich Result Display
Supports spectrum analysis, distance-thickness mapping, 2D chromatograms, and 3D surface imaging.
Portable and Reliable
Ultra-thin detachable large-capacity battery (≥7h), ABS+PC flame-retardant housing, IP65 waterproof/dustproof.
Industrial-grade Capacitive Screen
Smooth, precise, and sunlight-adapted operation with bilingual interface (Chinese/English).
Technical Parameter
|
Model |
RSM-IET(C) |
|
Housing |
High-strength engineering plastic |
|
Control Mode |
Touch screen |
|
Display |
8.4-inch LCD screen |
|
Resolution |
800 × 600 (adjustable backlight) |
|
Main Control System |
Low-power embedded system Main frequency: ≥1 GHz, Memory: 1 GB |
|
Power Supply |
Detachable lithium battery |
|
Battery Life |
≥7 hours |
|
Testing Range |
0.09 m-2 m |
|
Acquisition Mode |
Wired |
|
Channels |
2 |
|
Operating Modes |
Single-channel, Dual-channel |
|
Frequency Characteristics |
2 Hz-70 kHz |
|
Amplitude Accuracy |
≤±5% |
|
A/D Conversion |
24-bit |
|
Floating-point Amplification |
1-100 |
|
Sampling Interval |
1μs -200μs |
|
Sampling Length |
0.5k, 1k, 2k, 4k, 8k, 16k, 32k |
|
Relative Time Error |
≤±1 sampling interval |
|
System Noise |
< 100μV |
|
Storage |
Electronic hard disk, 16 GB |
|

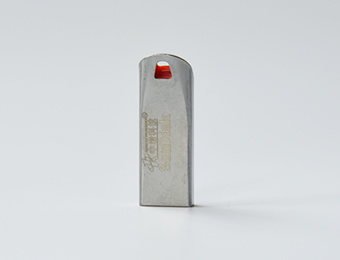

Data Export |
USB drive |
|
Trigger Level |
4 levels adjustable |
|
Screen Brightness |
4 levels adjustable |
|

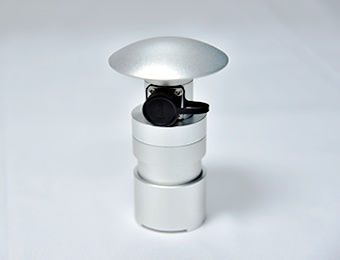

Sensor Type |
Accelerometer |
|
Sensor Bandwidth |
3 Hz- 25 kHz |
|
Dimensions |
265×200×56 mm |
|
Weight |
2.0 kg |
