RSM-SNR(C) Pipeline Motive Sonar Test System (Blue Whale No.1)
Powerful Propulsion, Free Diving · Dual Sonar & Optical Ultra-clear Detection
Classification:
RSM-SNR(C) combines advanced sonar detection with a 4K ESI anti-shake camera and eight-thruster propulsion. It provides high-precision, real-time 3D inspection of pipelines and submerged structures without drainage, delivering faster, more intuitive, and highly reliable defect detection.
Cotnact：
Introduction
The RSM-SNR(C) Pipeline Motive Sonar Test System (Blue Whale No.1) is designed for efficient inspection of submerged pipelines, detection wells, and underground cavities. Unlike traditional sonar systems, it integrates powerful propulsion thrusters and a 4K ultra-clear camera, eliminating the need for pulling ropes or cables. The system supports 360° all-directional movement—forward, backward, lateral, ascent, descent, and roll—enabling flexible maneuvering in complex environments. It can accurately identify structural and functional defects (cracks, deformation, branch connections, siltation, obstacles, residual walls, dam footings, etc.), calculate deposition volume, and generate longitudinal silt profiles in real time. With intelligent multi-dimensional 3D visualization, the system greatly improves pipeline inspection efficiency and is especially suited for cities with high groundwater levels. As a complement to CCTV systems, it has become an indispensable tool for water-filled pipeline detection and evaluation.
Applications & Use Cases
Structural surveys of water-filled pipelines (>300 mm) without drainage conditions
Full-pipe inspection and condition assessment
Quantitative analysis of silt deposition to guide dredging work
Detection of water-filled shafts and underground cavities
Applicable standards
Technical Code for Inspection and Evaluation of Urban Drainage Pipelines (CJJ 181-2012)
Technical Code for CCTV and Sonar Inspection and Evaluation of Drainage Pipelines (DB31/T 444-2022)
Technical Code for Inspection and Evaluation of Urban Public Drainage Pipelines (DB44/T 1025-2012)
Standard for Functional Classification of Drainage Pipelines and Conduits (Q/BDG JS001-GW05-2012)
Standard for Functional Classification of Drainage Pipelines and Conduits (Q/BDG JS002-GW05-2012)
Core advantages
Powerful Propulsion
Equipped with eight thrusters, maximum speed up to 1.54 m/s, ensuring agile underwater maneuvering.
Ultra-clear Imaging
Built-in 4K/12 MP ESI anti-shake camera with high-brightness LED lights for crystal-clear visuals.
360° Full-range Detection
Enables free forward, backward, ascent, descent, roll, and tilt; no blind spots.
Wireless Operation
Supports 2.4G/5G Wi-Fi wireless connection with stable signal; easy to control via remote or tablet.
Efficient Testing
No pre-drainage or pulling ropes required, adaptable to complex field conditions.
Smart 3D Analysis
Multi-color planar and 3D displays; automatic contour detection, silt quantification, and one-click report generation.
Compact & Portable
Aluminum-alloy body under 4.5 kg; modular automatic reel with detachable chassis for easy transport and maintenance.
Technical Parameter
|
Model |
RSM-SNR(C) |
|
Submersible Vehicle |
|
|
Dimensions |
518×267×290 mm |
|
Weight |
8 kg (including sonar probe and battery) |
|
Battery |
200 Wh |
|
Maximum Depth |
100 m |
|
Maximum Speed |
1.5 m/s (3 knots) |
|
Endurance |
≥4 h |
|
Battery Cycle Life |
> 300 cycles |
|
Operating Temperature |
-10°C to +45°C |
|
IMU |
Three-axis gyroscope, accelerometer, compass |
|
Depth Sensor Accuracy |
<±0.25 m |
|
Temperature Sensor Accuracy |
<±2°C |
|
Automatic Cable Reel |
|
|
Counting |
High-precision encoder (±0.1 mm), cable length displayed in video interface |
|
Reel-in/Out & Safety Measures |
Motor-driven automatic reeling, supports jog control, adjustable brake tension, equipped with emergency stop button |
|
Mobility |
Two fixed wheels and two universal wheels with brakes |
|
Power Supply |
AC/DC compatible (AC: 90–264 V, 50/60 Hz; DC: 120–370 V) |
|
Cable |
2-core, diameter 7.6 mm, tensile strength 300 kg (standard 300 m, customizable length) |
|
Automatic Cable Arrangement |
Multi-layer auto winding |
|
Dimensions & Weight |
670 × 460 × 550 mm (including chassis height 120 mm), 52 kg (chassis and control box detachable) |
|
Protective Devices |
Equipped with cable connector tension traction and anti-bending rubber sleeve to prevent accidental breakage; includes downhole device and cable protection system |
|
Power |
Maximum traction force up to 14 kg |
|
LED Auxiliary Lighting |
|
|
Brightness |
2×2000 lm |
|
Color Temperature |
5000K–5500K |
|
CRI (Color Rendering Index) |
85 |
|
Dimming |
Three-level adjustable |
|
Charger |
|
|
Charging Power |
2.9 A / 25.2 V |
|
Submersible Vehicle Charging Time |
2.5 h |
|
Remote Controller Charging Time |
2 h |
|
Remote Controller |
|
|
Dimensions |
160×155×125 mm |
|
Weight |
≈ 0.685 kg |
|
Battery |
2500 mAh |
|
Endurance |
≥ 6 h (depending on usage environment) |
|
Wireless |
2.4G / 5G Wi-Fi supported |
|
HDMI |
1080P supported |
|
Type-C |
USB communication |
|
Camera |
|
|
CMOS Sensor |
1/2.3 |
|
Aperture |
F1.8 |
|
Focal Length |
1 m |
|
Maximum Photo Resolution |
12 MP |
|
Photo Format |
JPEG / PNG |
|
Video Recording |
4K UHD: 3840 × 2160, 30 fps FHD: 1920 × 1080, 30/60/120 fps 1080P: 4× (120 fps) |
|
Maximum Video Bitrate |
60 Mbps |
|
Video Format |
MP4 |
|
Sonar Probe |
|
|
Applicable Pipe Diameter Range |
DN300–6000 mm |
|
Operating Temperature |
0–40°C (non-freezing conditions) |
|
Protection Grade |
IP68 |
|
Material |
Stainless steel housing, approx. 2.8 kg |
|
Acoustic Frequency |
2 MHz |
|
Beam Width |
1.1°(-3 dB), conical beam |
|
Resolution Accuracy |
0.5 mm (within 125 mm range) |
|
Pulse Width |
4–20 µs |
|
Receiving Bandwidth |
500 kHz |
|
Power Supply |
20 V DC, peak current 1 A |
Standard Configuration

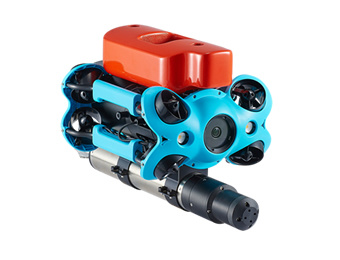

Underwater Robot 1set

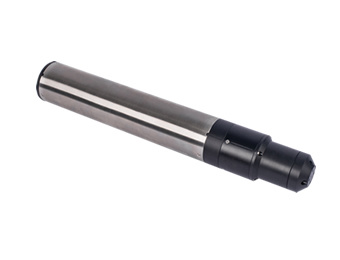

Sonar Probe 1 pc

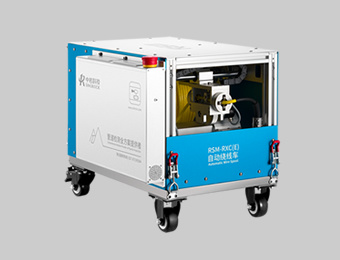

Automatic Cable Reel (Electric) 1 set

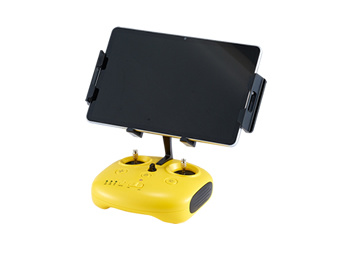

Remote Controller 1pc
Wrench 1pc

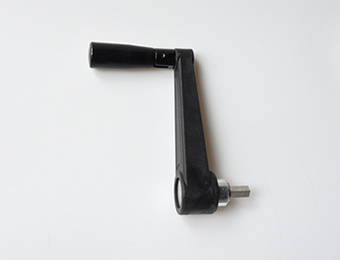

Manual Winding Handle 1pc

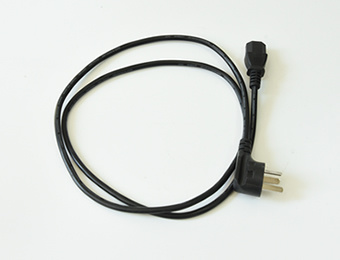

Power Cable 1pc
Tool Kit Quantity: 1 set (Contents: USB drive, Allen wrench set, lubricant, assorted screws)

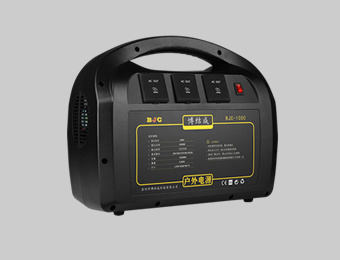

Portable AC/DC Power Supply 1pc
Special Tool Kit 1pc

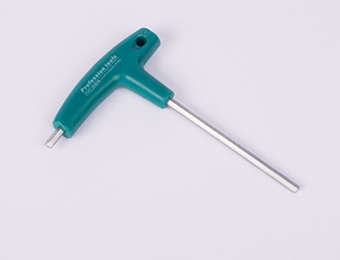

T-Wrench 1pc

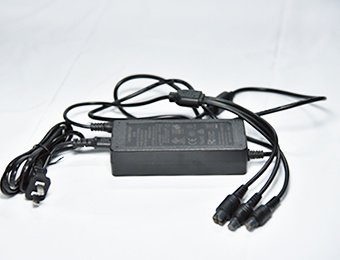

Charger 1pc
Robot Battery 2pcs

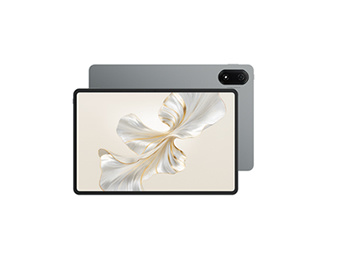

Main Control Terminal 1 set

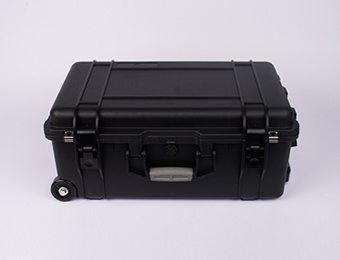

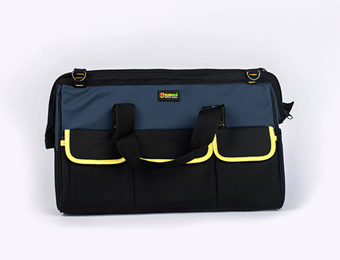

Equipment Case 1pc
Market Case
Downloads
FAQs
Q
What problems does the RSM-SNR(C) solve that conventional sonar/CCTV tools can’t?
+
A
It combines an eight-thruster submersible (free forward/back/ascend/descend/roll/tilt) with 4K anti-shake optical imaging + 2 MHz sonar, so you can inspect water-filled pipelines and shafts without drainage or tow cables. It quantifies silt deposition, generates longitudinal silt profiles and 3D visuals, and supports one-click reporting—ideal for high-groundwater cities.
Q
What are the key performance specs for range, endurance, and image/sonar quality?
+
A
Max depth 100 m, top speed 1.5 m/s, endurance ≥4 h (200 Wh battery), operating −10 °C to +45 °C. The camera records up to 4K/30 fps (12 MP stills), with 2×2000 lm LED lighting. The 2 MHz sonar has 1.1° beam width and 0.5 mm resolution (within 125 mm). The probe is IP68 and supports pipe diameters DN300–6000 mm.
Q
How is deployment handled on site—cable, control, and safety?
+
A
A modular automatic cable reel (standard 300 m, customizable; 300 kg tensile-strength cable) provides motorized in/out, adjustable brake, emergency stop, and ±0.1 mm encoder readout overlaid on video. Control is via 2.4G/5G Wi-Fi remote/tablet (HDMI 1080p output), with a compact aluminum-alloy body (< 4.5 kg) for portability; overall underwater vehicle weight is ~8 kg including sonar and battery.
