RSM-DIC(B) Intelligent Digital Image Deformation Monitoring System
Non-contact, High-precision Dynamic Deformation Measurement
Classification:
The RSM-DIC(B) system offers non-contact, high-precision deformation monitoring across large-scale infrastructures. Compact, reliable, and intelligent, it enables real-time, multi-point measurements with advanced anti-interference capabilities, ensuring accurate structural safety evaluation under diverse conditions.
Cotnact：
Introduction
The RSM-DIC(B) system provides comprehensive, all-weather monitoring for large-scale structures. Leveraging industrial-grade imaging, intelligent base stations, and cloud-enabled data platforms, it achieves multi-point dynamic measurement, remote operation, and intelligent analysis. With compact design and robust anti-interference algorithms, it ensures reliable, high-frequency data output and long-term stability. From bridges and tunnels to buildings and dams, the system offers a powerful solution for structural health monitoring and safety management.
Applications
Long-term monitoring of highways, railways, and urban transit bridges
Deformation detection of tunnels and underground utility corridors
Structural monitoring of high-rise buildings, dams, slopes, and towers
Dynamic safety evaluation of cranes and large lifting machinery
Applicable standards
Standard for Engineering Surveying (GB 50026-2020)
General Code for Engineering Surveying (GB 55018-2021)
Technical Code for Monitoring of Urban Rail Transit Engineering (GB 50911-2013)
Code for Measurement of Building Deformation (JGJ 8-2016)
Technical Code for Monitoring of Building and Bridge Structures (GB 50982-2014)
Code for Surveying of Urban Rail Transit Engineering (GB/T 50308-2017)
Core advantages

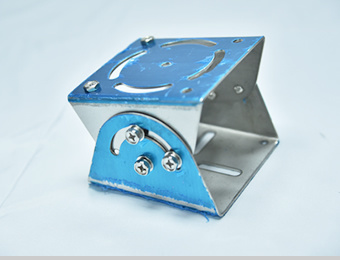

Compact & Easy Installation
Base station is only 1/5 the size of traditional control boxes; requires only two cable connections.
Whole-field Measurement
Supports up to 90 points per instrument for large-scale deformation monitoring.
High-frequency Sampling
Dynamic measurement frequency up to 40 Hz per point.
High-precision Measurement
Sub-pixel algorithms and image enhancement ensure 0.01 mm resolution within 10 m.
Remote Intelligent Control
Remote access via PC or mobile for point replacement, frequency adjustment, and device reboot.
All-weather Monitoring

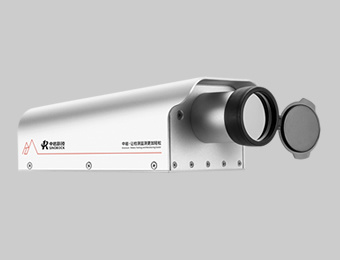

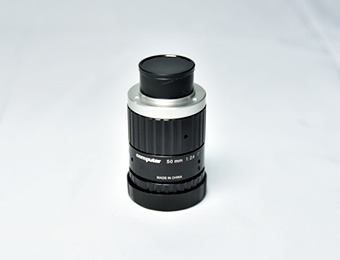

Industrial cameras with infrared targets enable 24/7 monitoring; dual local + cloud storage prevents data loss.
Technical Parameter
|
Model |
RSM-DIC(B) |
|
Monitoring Distance |
1 m- 1000 m |
|
Resolution |
0.01 mm (within 10 m) |
|
Measurement Accuracy |
0–10 m: ≤0.02 mm 10–50 m: ≤0.1 mm 50–120 m: ≤0.3 mm 120–300 m: ≤1 mm 300–1000 m: ≤10 mm |
|
Measurement Frequency |
40 Hz (continuously adjustable from 1–40 Hz) |
|
Number of Static Measurement Points |
Unlimited (≥1 Hz) |
|
Number of Dynamic Measurement Points |
90 points @ 40 Hz |
|
Communication Mode |
Compatible with Ethernet, 4G, RS485 |
|
Operating System |
Windows 10, 64-bit |
|
Resume Transmission After Power Failure |
Supported |
|
Remote Control |
Supported |
|
Temperature Control |
Intelligent regulation |
|
Operating Temperature |
-40℃ to +85℃ |
|

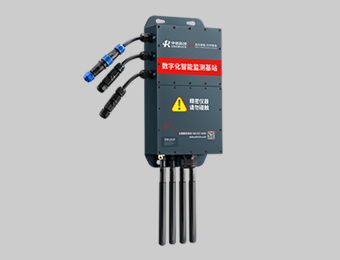

Digital Intelligent Monitoring Base Station |
|
|
Number of Host Devices Supported |
1 unit |
|
Number of Infrared Targets Supported |
Unlimited |
|
Communication Distance |
≥300 m |
|
Communication Cable |

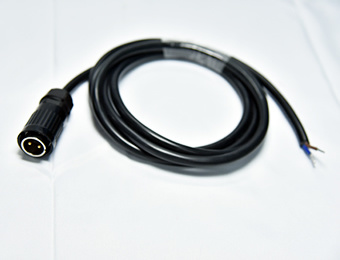

Single cable (compatible with power supply and communication) |
|
Dimensions |
160×340×61.5 mm |
Market Case
Downloads
FAQs
Q
What can the RSM-DIC(B) monitor, and where is it used?
+
A
It’s a non-contact digital image system for whole-field deformation monitoring of large structures such as bridges, tunnels, buildings, dams, slopes, towers, and lifting machinery. It supports multi-point, real-time measurements for long-term structural health and safety evaluation.
Q
What measurement performance should I expect (range, resolution, frequency, points)?
+
A
Typical monitoring distance is 1–1000 m; resolution is 0.01 mm within 10 m. Nominal accuracy: ≤0.02 mm (0–10 m), ≤0.1 mm (10–50 m), ≤0.3 mm (50–120 m), ≤1 mm (120–300 m), ≤10 mm (300–1000 m). Dynamic sampling is 1–40 Hz (up to 40 Hz) with up to 90 points per instrument at 40 Hz; static points are unlimited (≥1 Hz).
Q
How is it deployed and managed on site (hardware, communications, standards)?
+
A
The compact base station (160×340×61.5 mm) uses a single power+data cable, supports Ethernet/4G/RS485, remote control, resume after power loss, and dual local+cloud storage for 24/7 operation from −40 ℃ to +85 ℃. Applicable standards include GB 50026-2020, GB 55018-2021, GB 50911-2013, JGJ 8-2016, GB 50982-2014, and GB/T 50308-2017.
