RSM-HGT(C) Ultrasonic Drilling Monitor

Dual-purpose Wet and Dry Hole Testing, Intelligent Processing.

Classification:

RSM-HGT(C) provides intelligent ultrasonic borehole quality testing with strong adaptability for wet and dry conditions. Equipped with automatic calibration, 3D simulation, and robust noise suppression, it delivers highly reliable, accurate, and efficient results across a wide range of engineering applications.

Cotnact：

WhatsApp

zhouwentao@whrsm.com

Request A Quote

Technical Support

全部分类

Discription
Specifications
Standard Configuration
Market Cases
Downloads
FAQs

Introduction

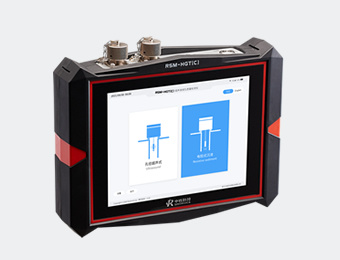

The RSM-HGT(C) Ultrasonic Drilling Monitor integrates durability with intelligent functionality. With a wide detection range (600–8000 mm aperture), strong signal power, and automatic borehole wall recognition, it adapts to complex field conditions including high-density slurry. The system supports 3D simulation of borehole conditions, real-time data printing, and multi-mode data display. Featuring an industrial-grade capacitive touchscreen, detachable large-capacity battery, and IP65 dustproof and waterproof protection, the RSM-HGT(C) ensures continuous, precise, and efficient monitoring under diverse construction environments.

Applications

Hole quality testing of bored piles for railways, highways, ports, and high-rise buildings

Branch and plate pile hole quality testing

Trenching quality testing of diaphragm walls

Applicable standards

Standard Test Procedures for Measuring the Inclination of Deep Foundation (ASTM D8232)

Core advantages

Strong Adaptability
Covers a wide detection range (600–8000 mm), supports wet/dry boreholes, and handles slurry densities up to 1.4 g/cm³ with clear first-wave recognition.

Intelligent Recognition & 3D Simulation
Automatic wellbore recognition with real-time 3D simulation output, intuitive deviation curves, and accurate result visualization.

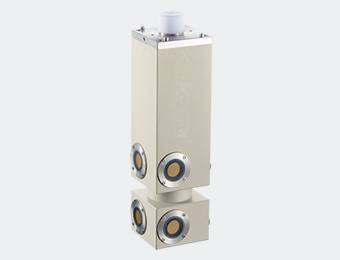

Advanced Probe Precision
Small blind zone and high signal strength; measurement accuracy up to 0.2% FS, supporting four-direction testing.

Portable & Reliable
Lightweight winch design with automatic wire arrangement; stable ABS+PC housing; IP65 dustproof and waterproof.

Smart Power & Battery
Equipped with ultra-thin large-capacity detachable battery (≥8h runtime), supports backup batteries for uninterrupted field work.

Cloud-enabled & User-friendly
Real-time data upload via 4G, Wi-Fi, or Bluetooth; intelligent software with one-click upgrades and customizable reporting.

Technical Parameter

Model	RSM-HGT(C)
Display Mode	8.4-inch high-brightness true-color LCD screen, resolution 800×600 (backlight adjustable)
Output Methods	On-site printing / USB export
Operation Method	Capacitive touch screen
Positioning System	Built-in GPS
Main Control System	Low-power embedded system, CPU ≥1GHz, memory 512M
Angle Correction	Built-in electronic compass
Scanning Speed	≥20 cycles/second
Operating Temperature	-20°C to +55°C
Frequency Bandwidth	1–500 kHz
Power Supply	Detachable lithium battery
Capacity	12,000 mAh
Thickness	9 mm
Endurance	≥8 hours
Sonic Time Accuracy	≤0.5%
Upload Methods	4G / Wi-Fi / Bluetooth
Measurement Accuracy	0.2% F·S
Protection Rating	IP65
Measurement Range (Borehole/Trench Width)	600–8000 mm
Maximum Measuring Depth	150 m (customizable)
Maximum Depth Resolution	5 mm
Recording Methods	Color image, data file
Casing	Engineering plastic ABS+PC
Dimensions	265 ×200 ×56 mm
Weight	2.0 kg (including lithium battery)

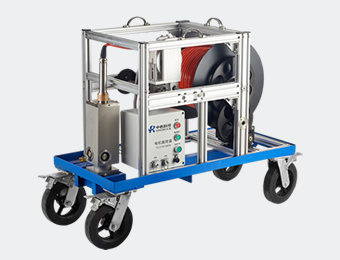

RSM Automatic Winch
Lifting Speed	0-20 m/min continuously adjustable, with emergency fast-lifting function
Auto-stop Functions	Equipped with bottom-hole auto-stop and top-hole auto-stop features
Dimensions	85 ×60 × 60 cm
Weight	70 kg
